Home
>>
Chevy Truck
>>
1990
>>
Suburban 1/2 Ton 2WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
>>
Testing and Inspection
>>
Component Diagnostic Charts
Component Diagnostic Charts

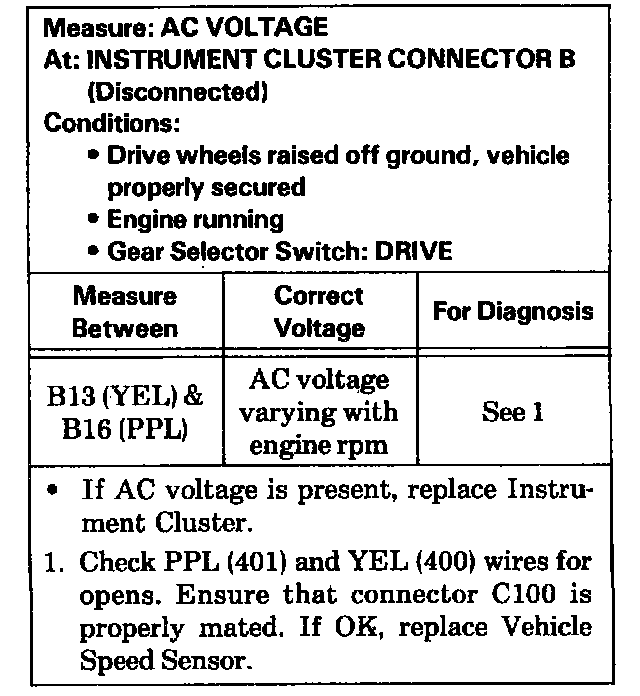

Fig. 21 Chart 8, Speed Sensor Test:
