Chevy Truck
>>
1990
>>
S10/T10 P/U 4WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

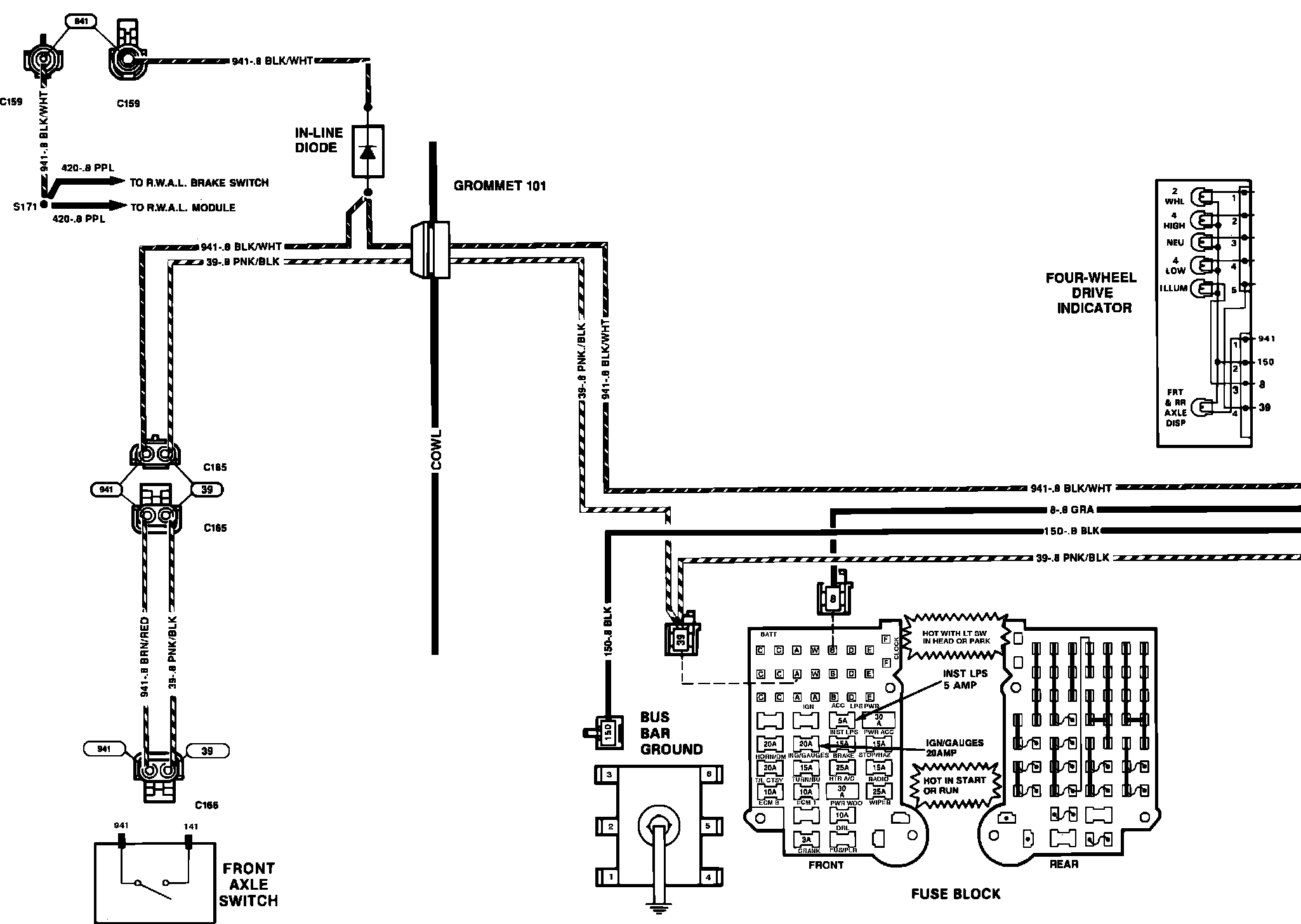

Four Wheel Drive Indicator
Four Wheel Drive Indicator
�$Warnings/Indicators: Four Wheel Drive:
