Home >> Chevy Truck >> 1990 >> S10/T10 P/U 2WD L4-151 2.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Digital I/P Cluster

Digital I/P Cluster

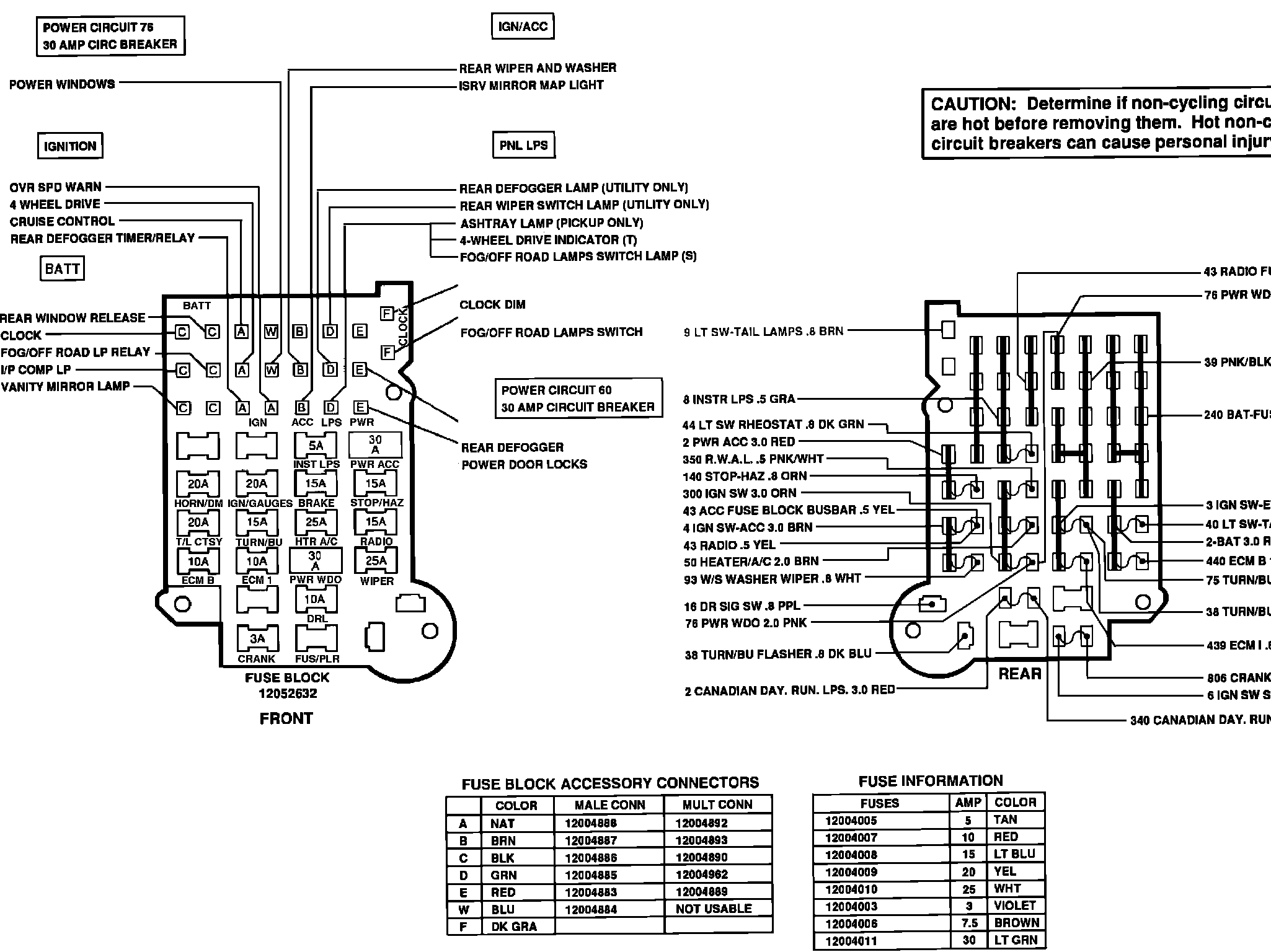

��Fuse Panel Details: Digital I/P Cluster:
