Chevy Truck
>>
1990
>>
S10/T10 P/U 2WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

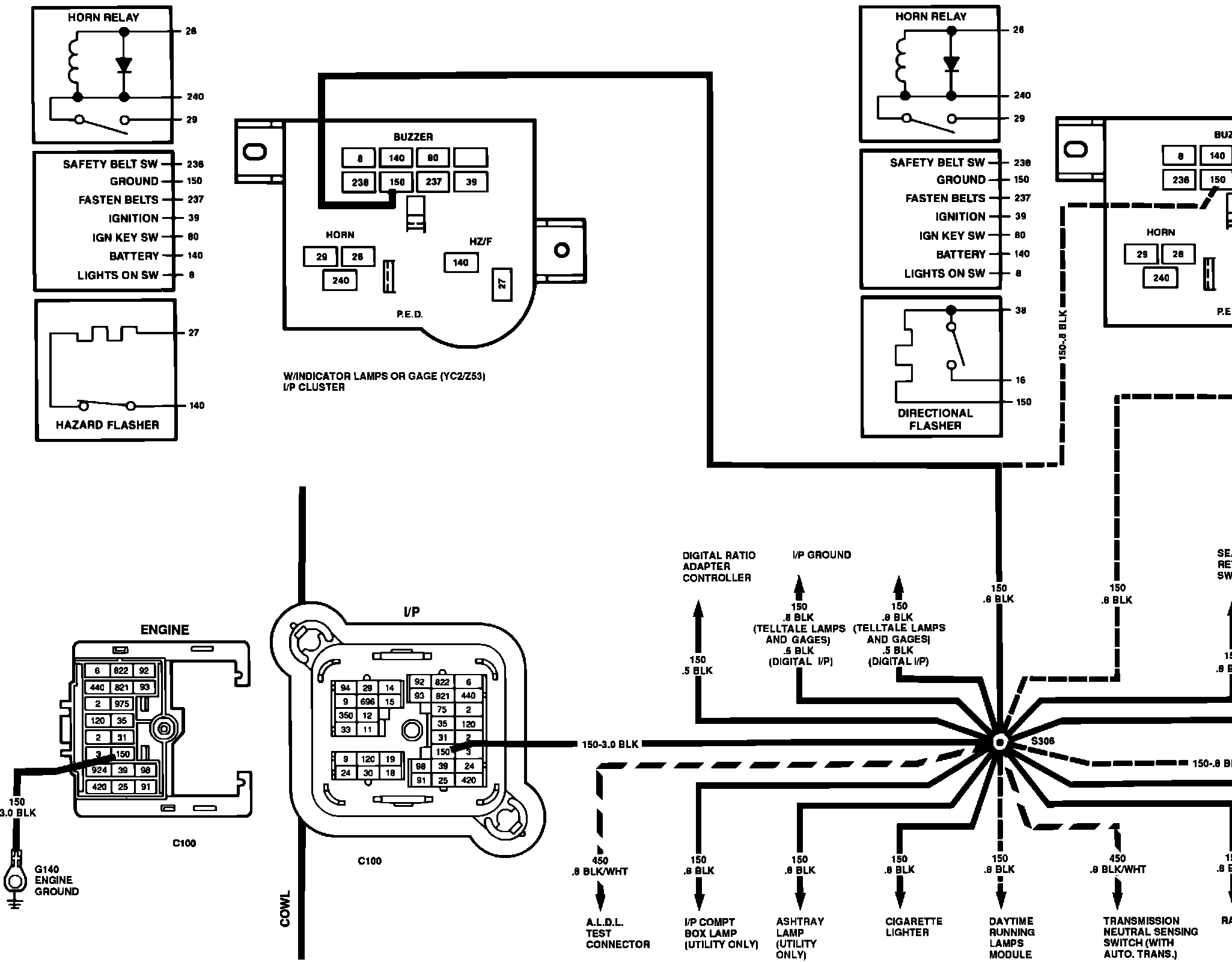

Convenience Center Details
Convenience Center Details
���1Convenience Center:
