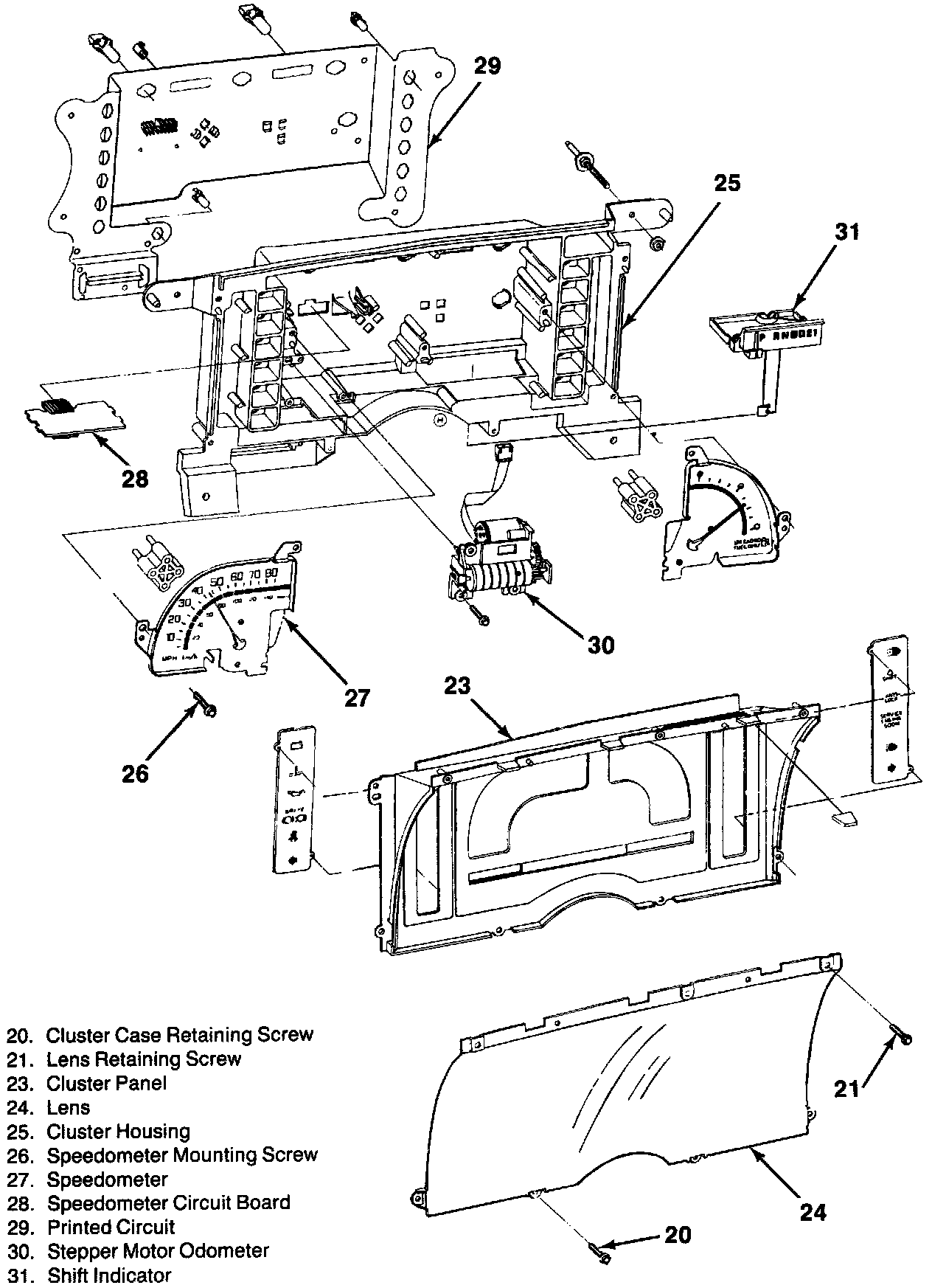

Base Cluster

REMOVE OR DISCONNECT
1. Instrument cluster, refer to Instrument Panel / Service and Repair.
2. Lens retaining screws and lens.
3. Cluster panel from the cluster housing.
4. Speedometer mounting screws and speedometer.

INSTALL OR CONNECT
1. Speedometer and mounting screws.
2. Cluster panel to the cluster housing.
3. Lens and retaining screws.
4. Instrument cluster.
