Chevy Truck
>>
1990
>>
S10/T10 P/U 2WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>

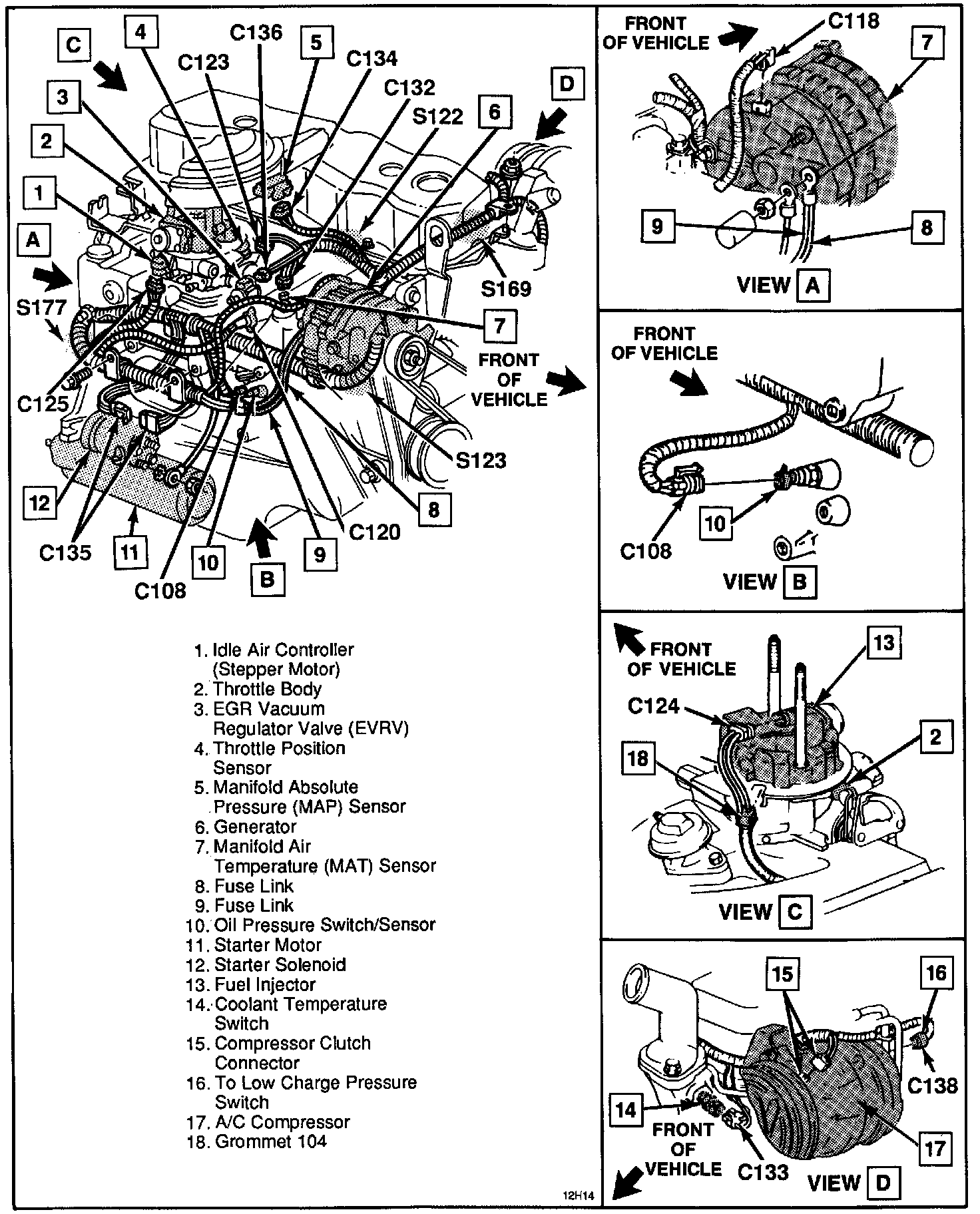

Connector Locations
>>
With A/C
>>
Compressor Clutch Connector
Compressor Clutch Connector
Engine Harness:
