Chevy Truck
>>
1990
>>
S10/T10 P/U 2WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
Trunk / Liftgate

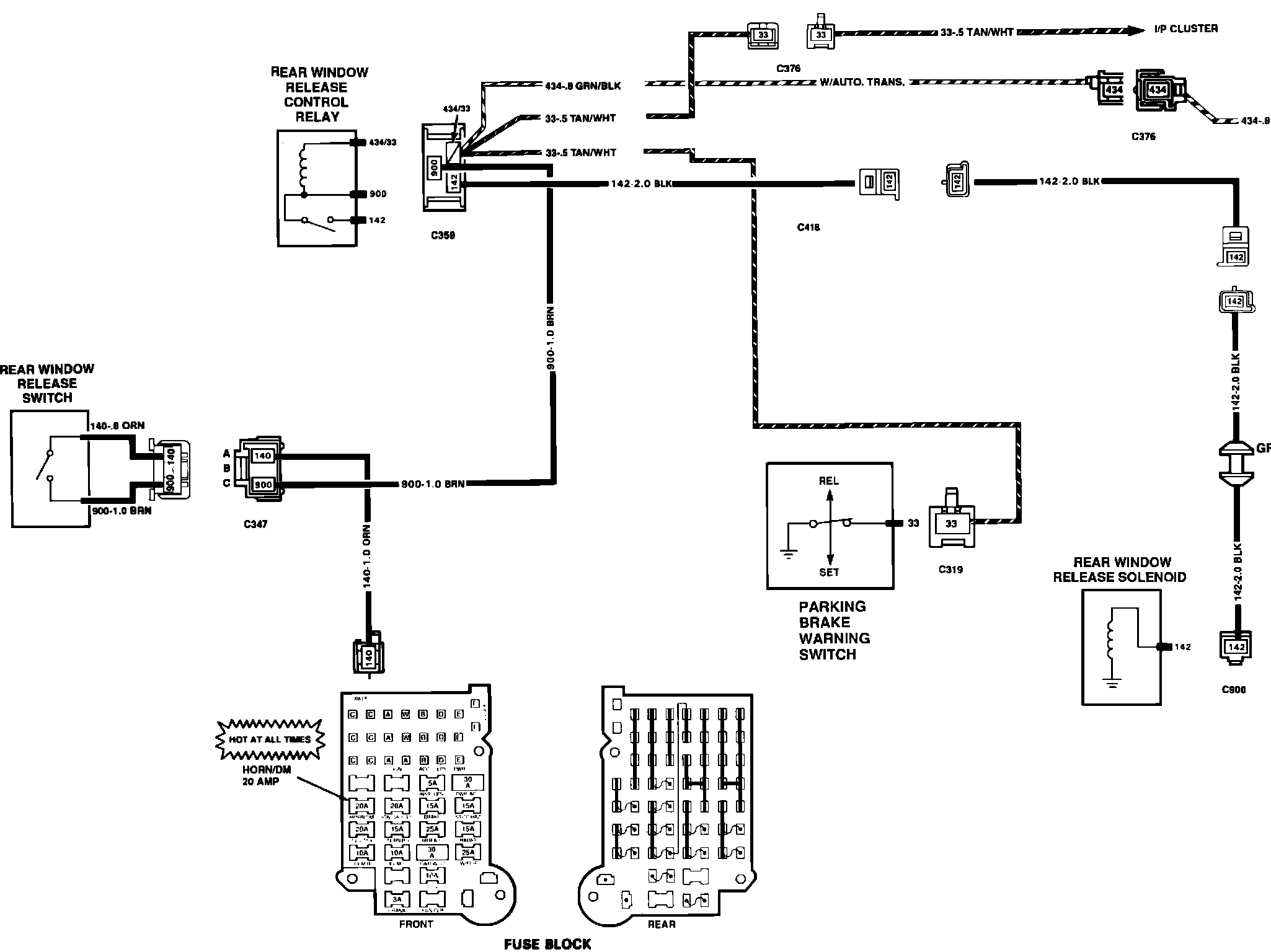

Yδ=Rear Window Release:
