Brake Rotor - Service and Specifications
>>

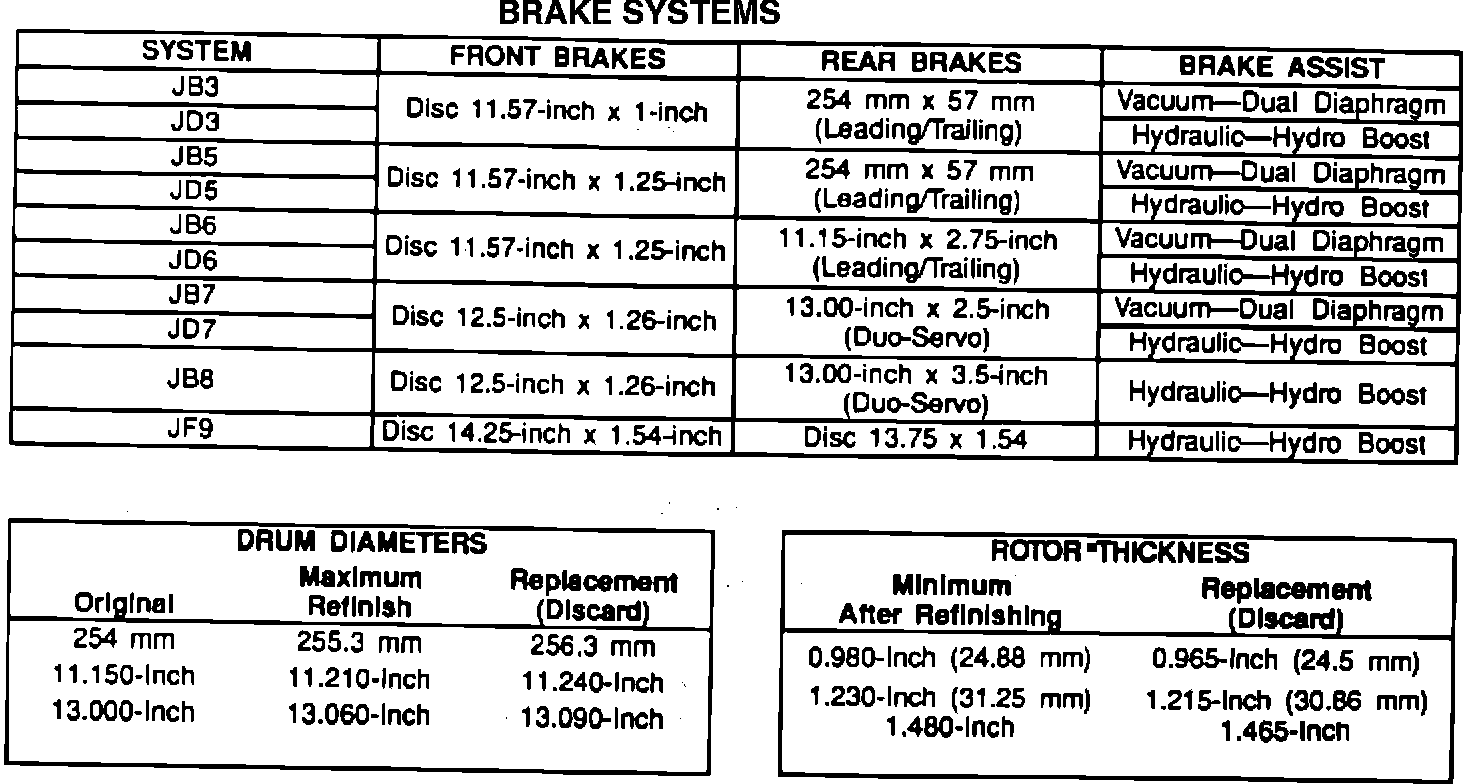

Specifications
Brake Rotor - Service and Specifications: Specifications

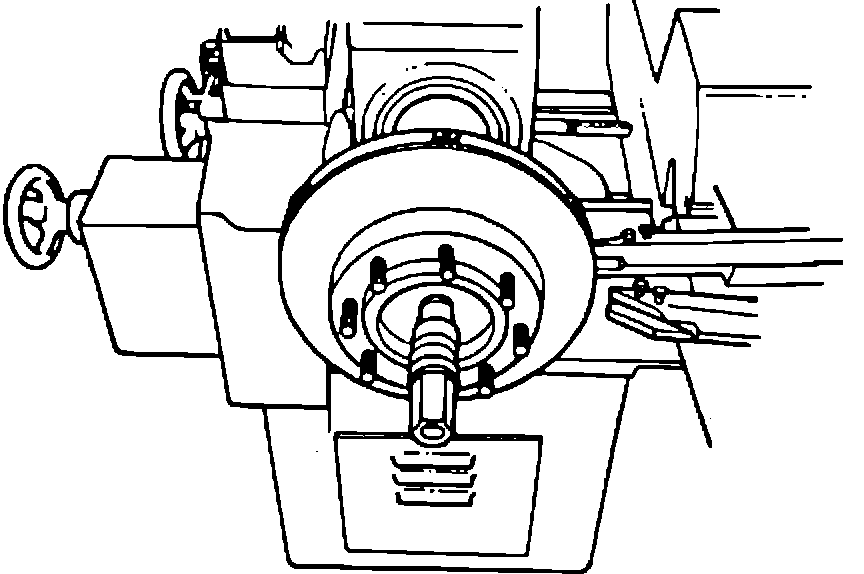

Turning the Rotor (Typical):
