Chevy Truck
>>
1990
>>
R 20 P/U 2WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

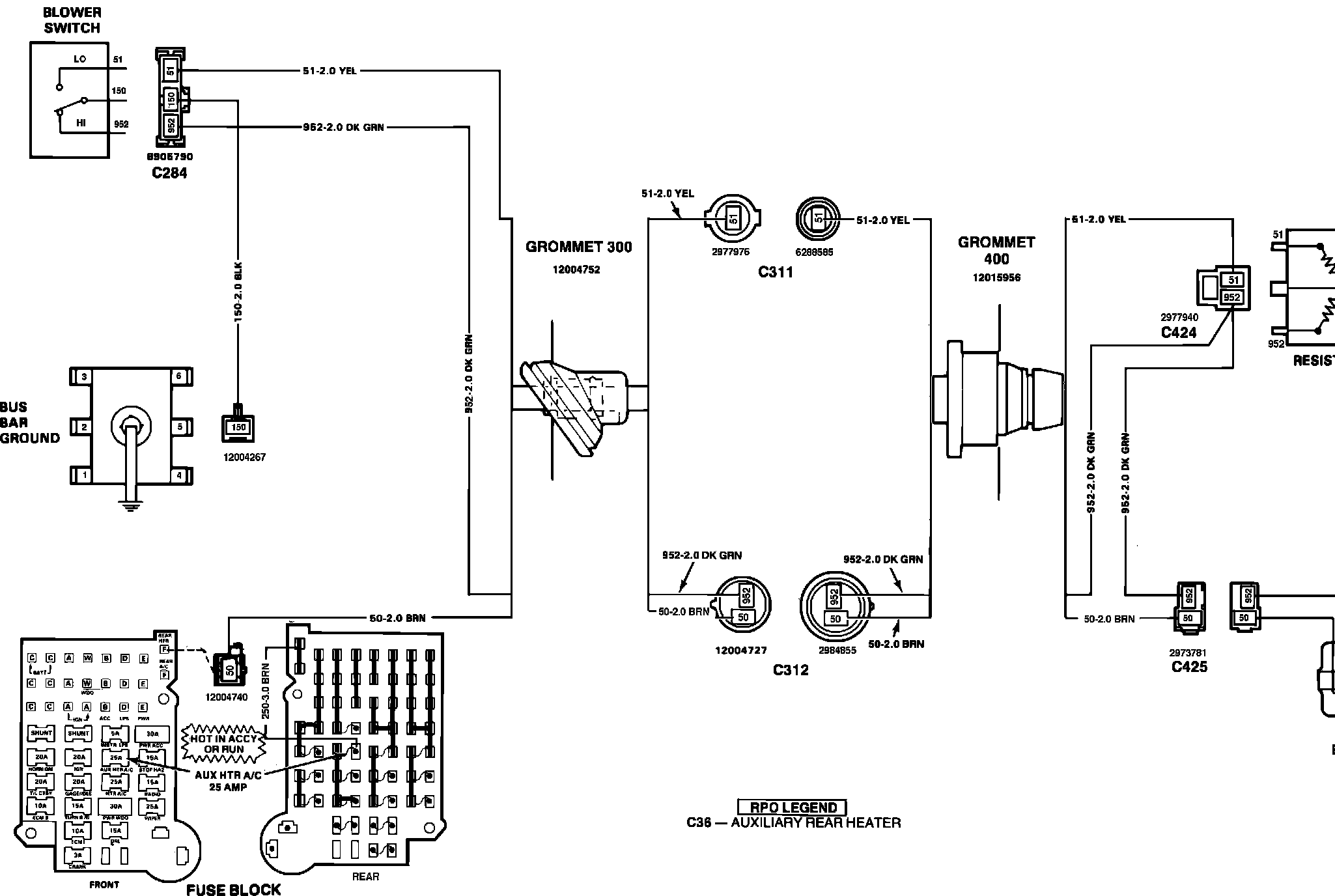

ļS6Auxiliary Heater:
