Home
>>
Chevy Truck
>>
1990
>>
R 20 P/U 2WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
>>
Charging System
Charging System

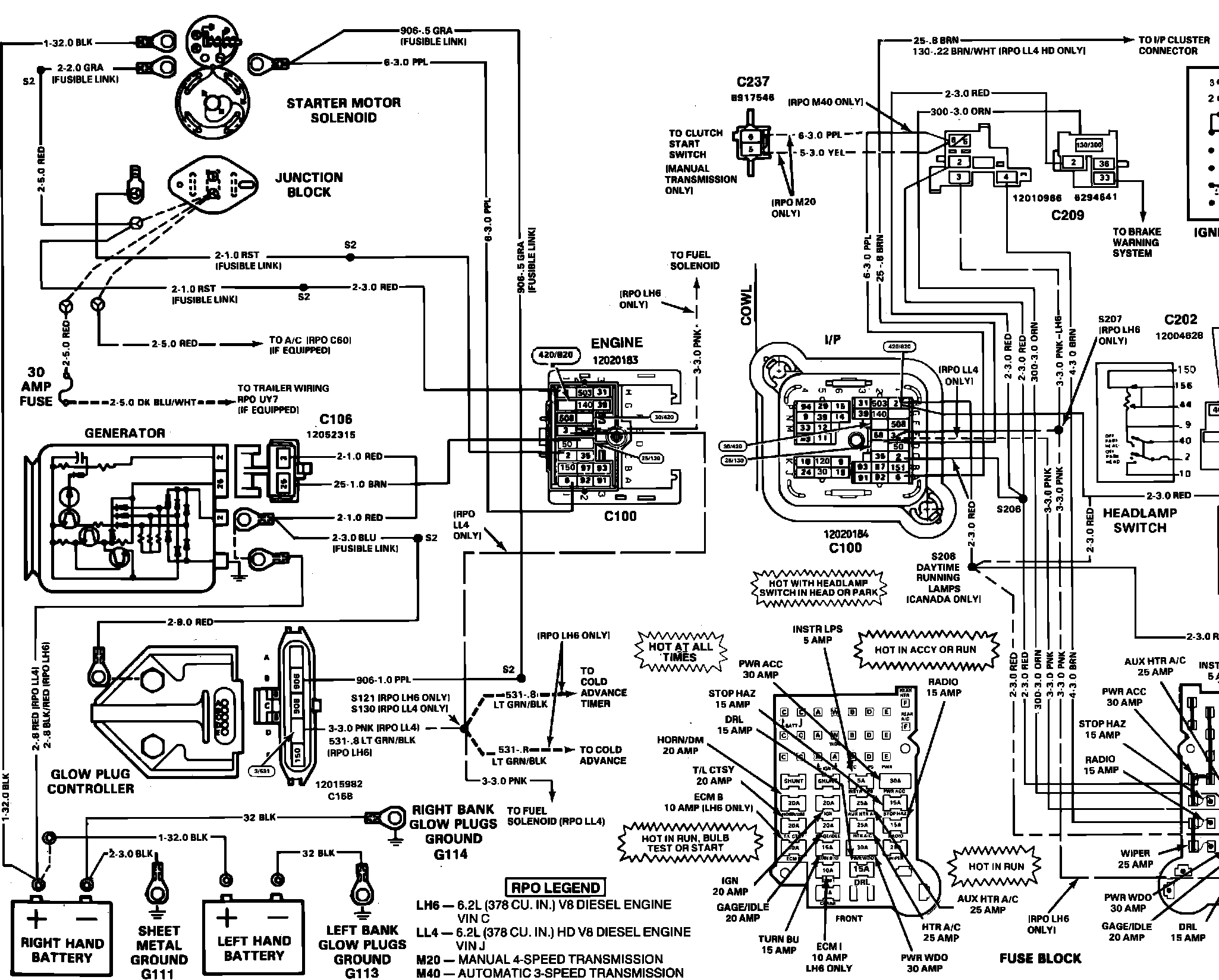

> �2Power Distribution and Charging System:
