Home
>>
Chevy Truck
>>
1990
>>
K 2500 Truck 4WD V8-454 7.4L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Transfer Case Controls

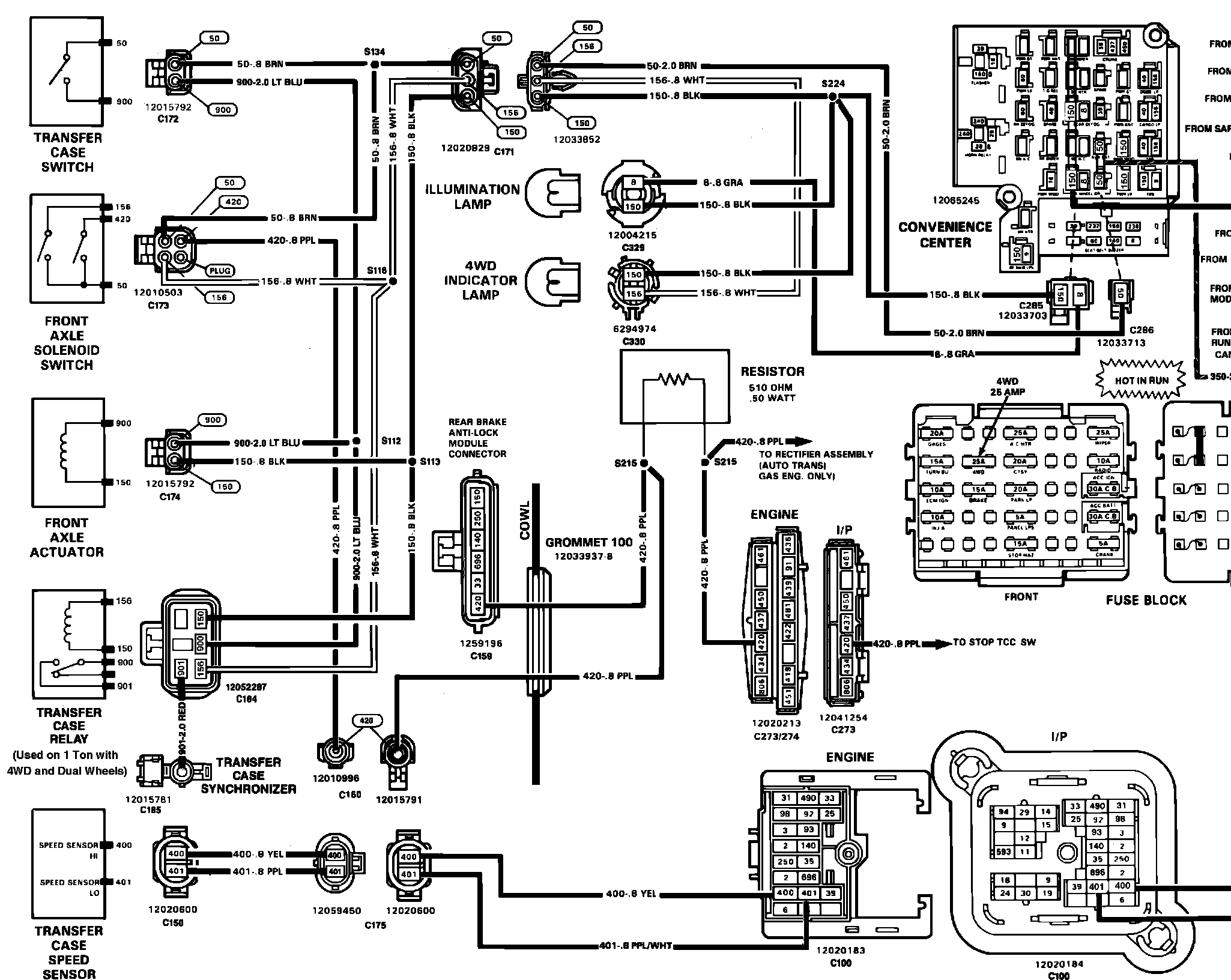

Transfer Case Controls
p��%Four Wheel Drive:
