Home >> Chevy Truck >> 1990 >> G 30 Van V8-454 7.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> A/C System >> Primary A/C

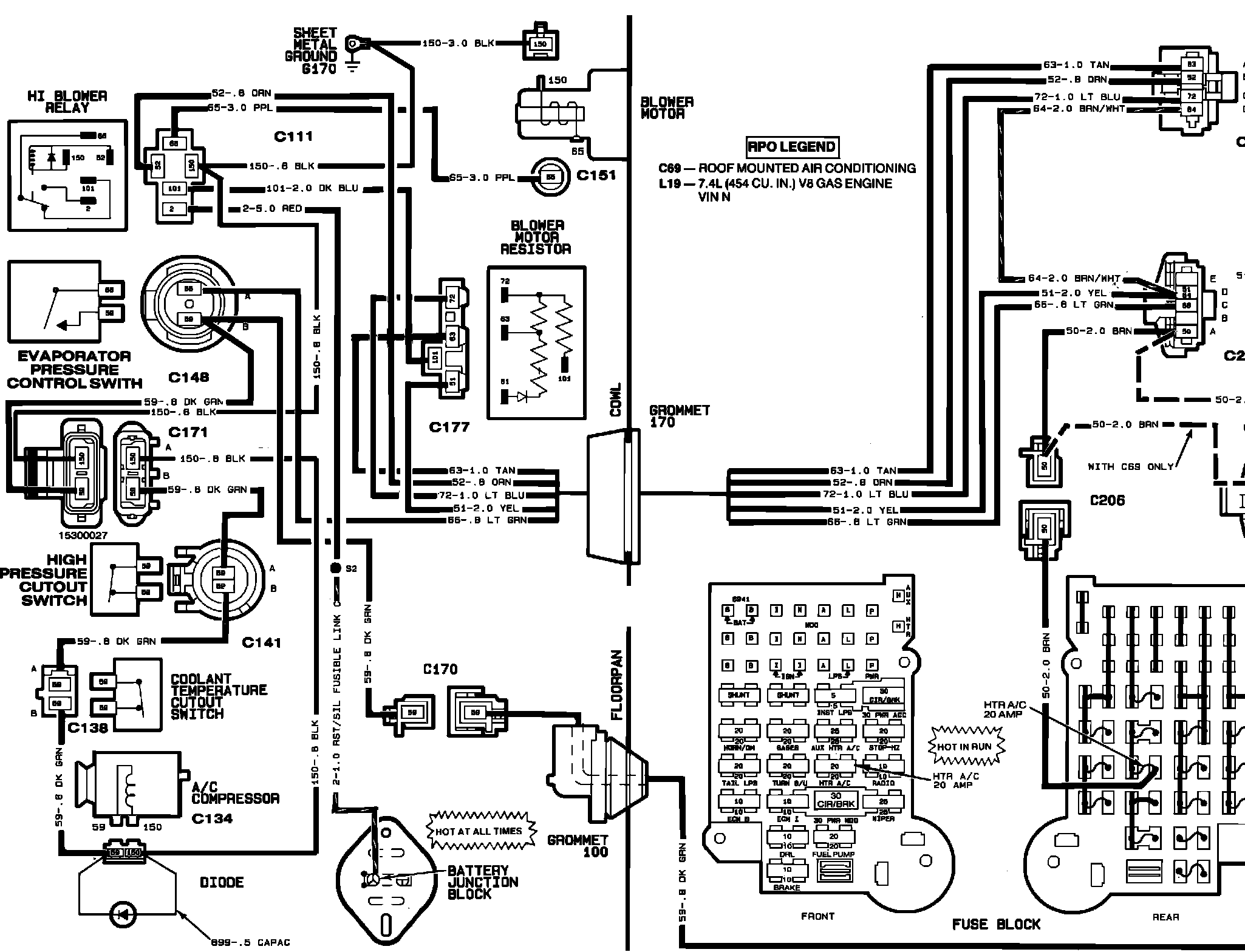

Primary A/C

��E9A/C (L19 Only):
