Home
>>
Chevy Truck
>>
1990
>>
G 10 Van V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Ignition Controls
Ignition Controls

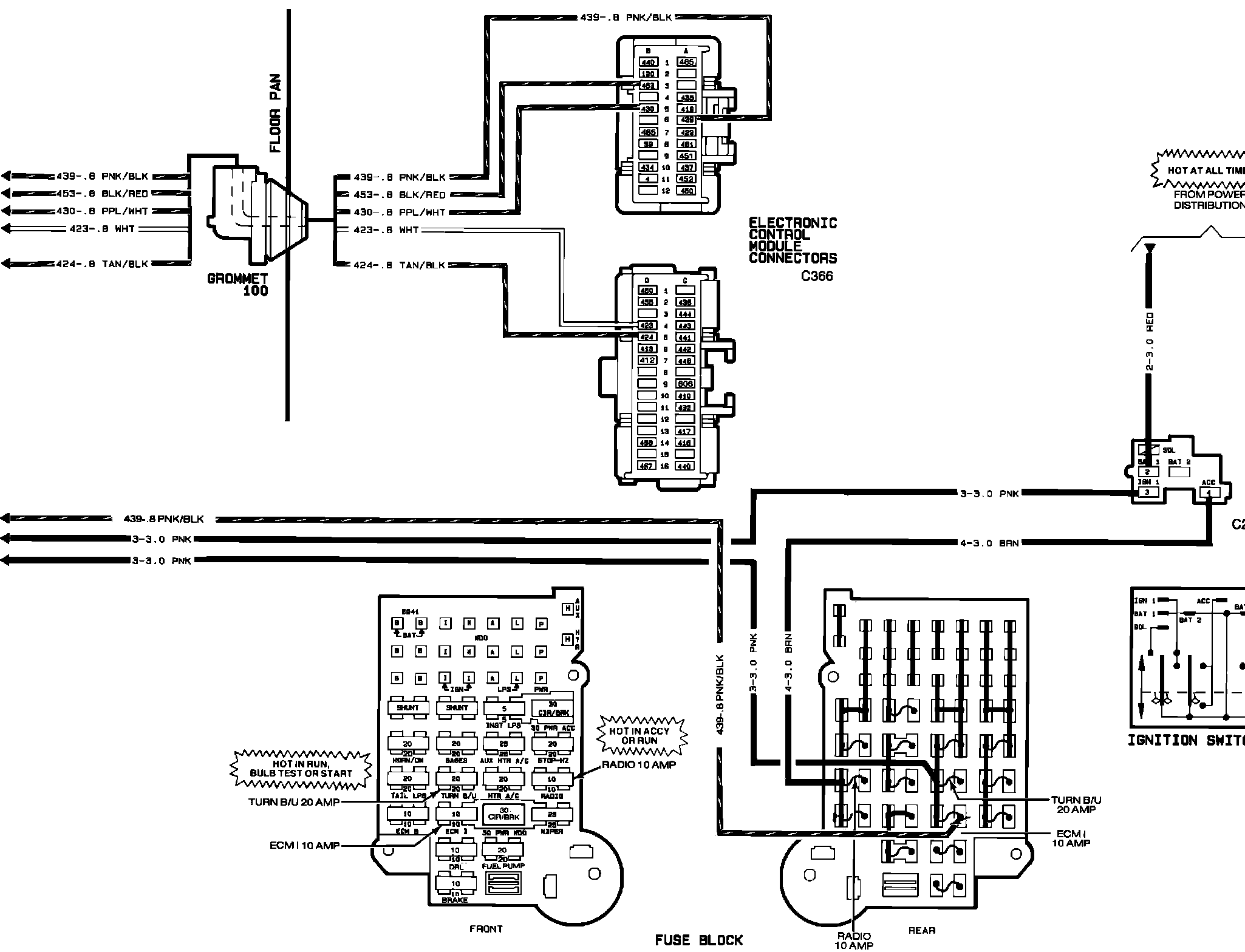

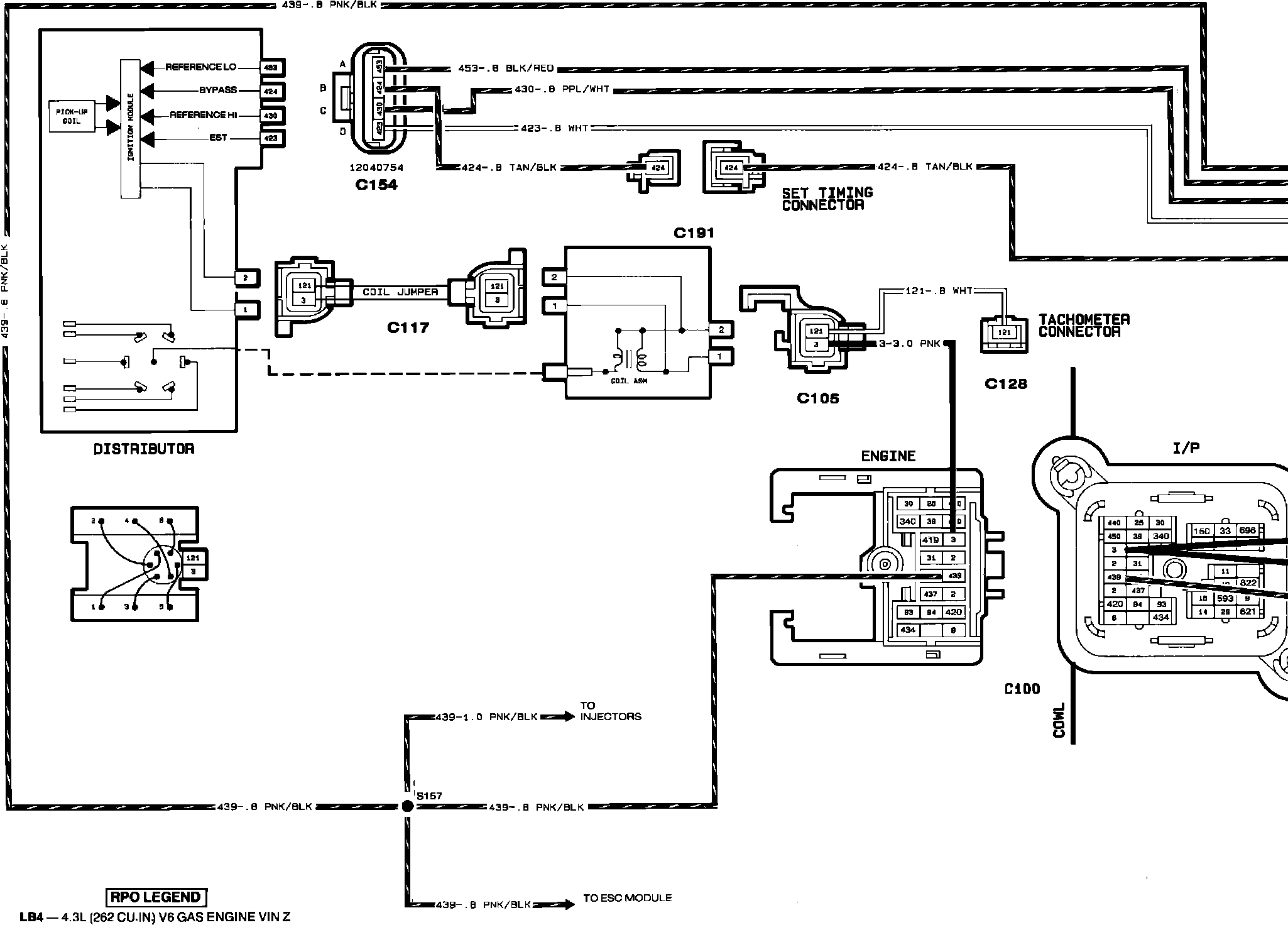

ES%Ignition System:
^IS%Ignition System:
