Chevy Truck
>>
1990
>>
C 2500 Truck 2WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

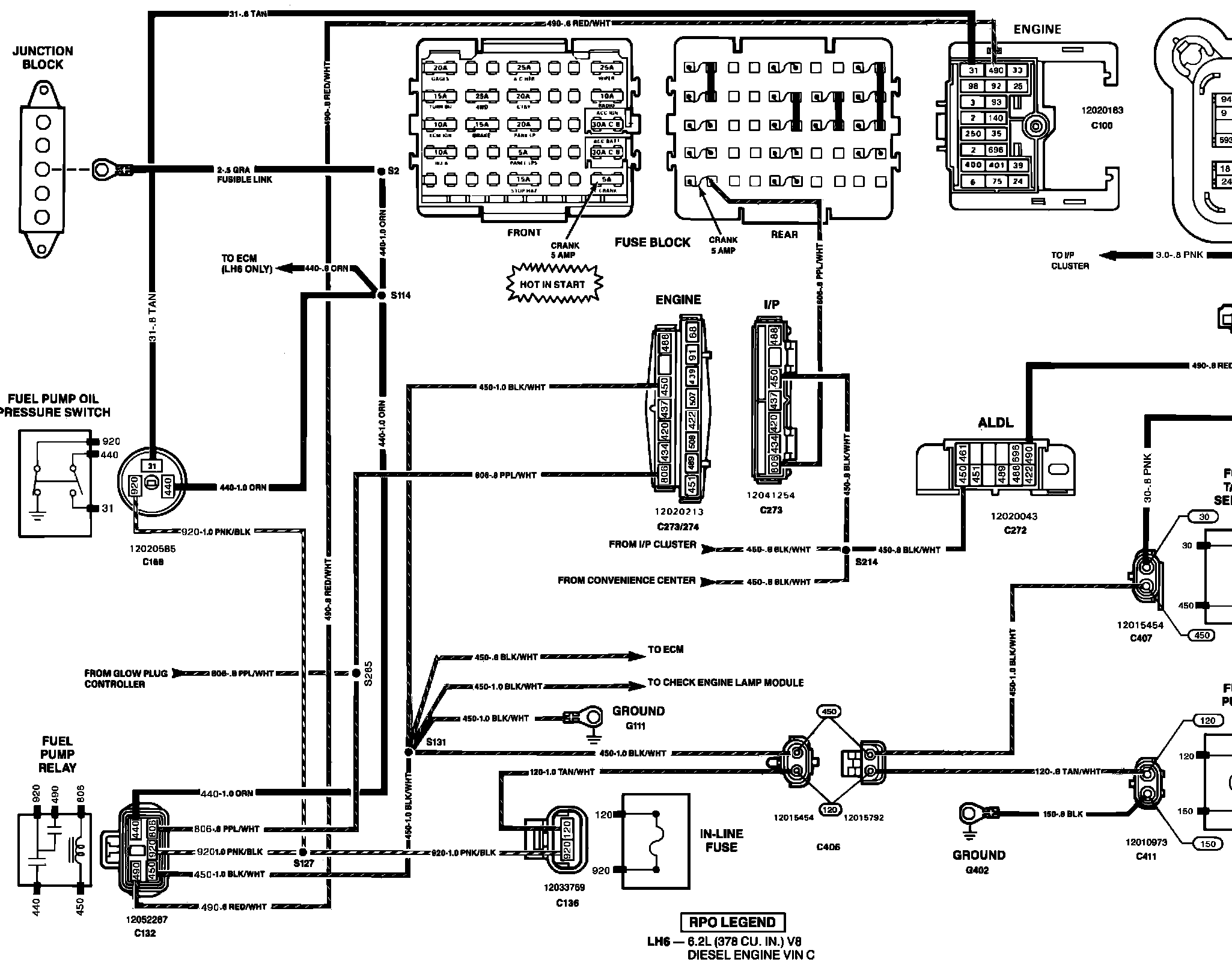

Fuel Pump Control
Fuel Pump Control
=�%Fuel Pump:
