Constant Velocity Joint: Service and Repair

Fig. 7 Drive Axle Components:

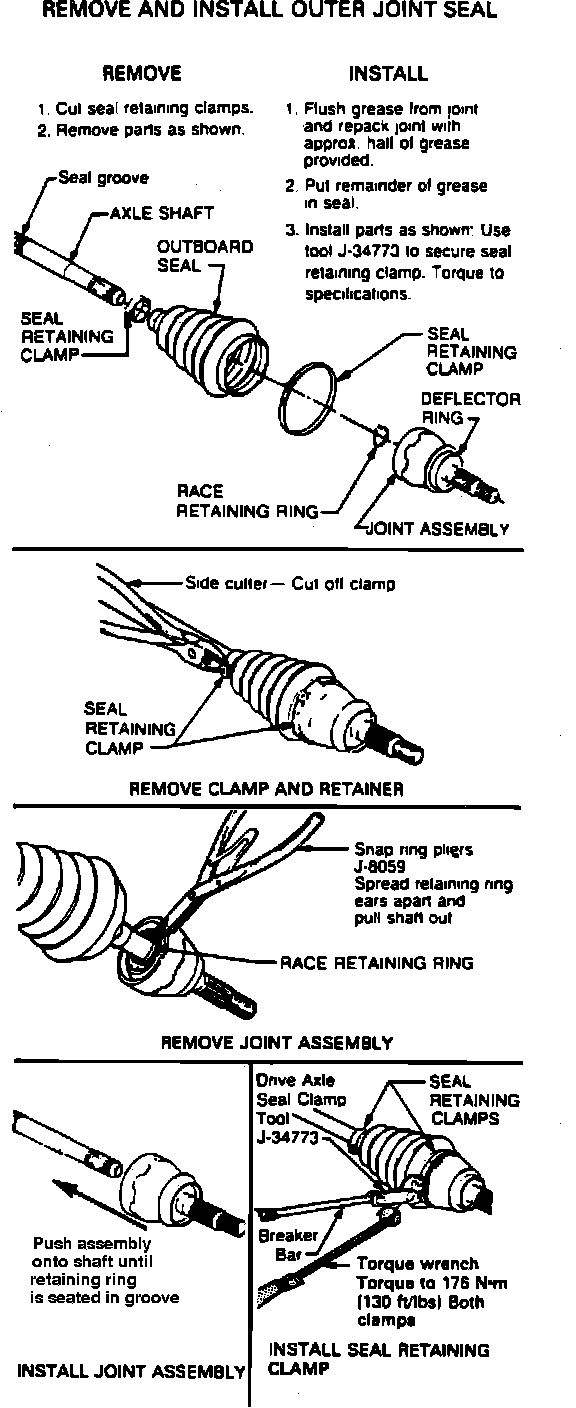

Fig. 8 Outer Constant Velocity Joint Seal Removal & Installation:

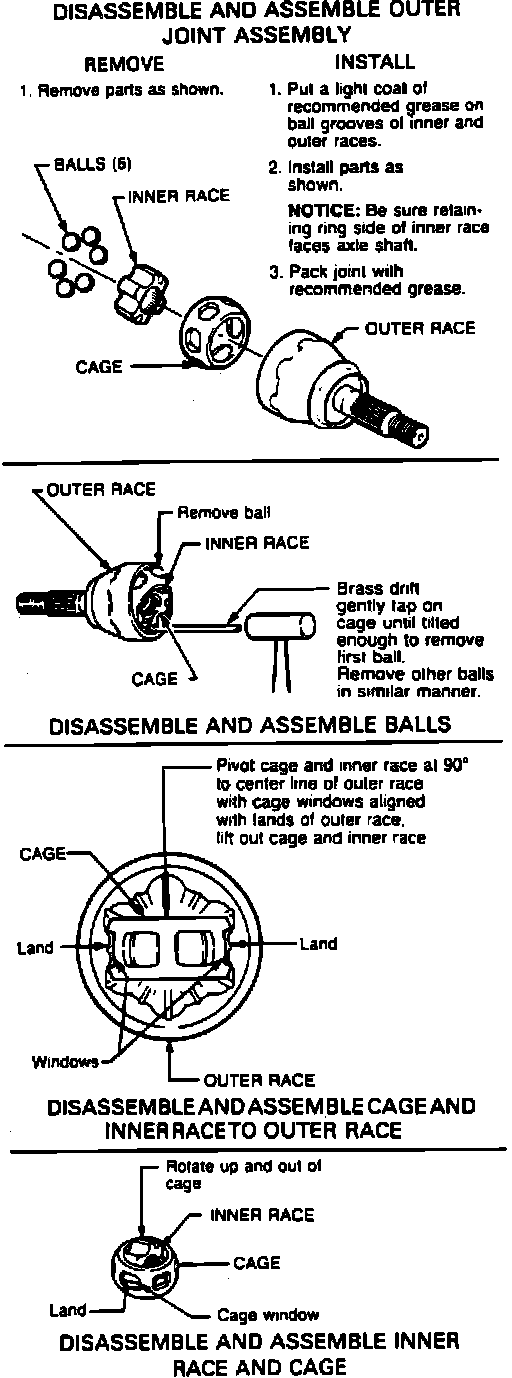

Fig. 9 Outer Constant Velocity Joint Disassembly & Assembly:

Refer to Figs. 7 through 9, for replacement procedure.
