Home
>>
Chevy Truck
>>
1990
>>
Astro Van L AWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Injectors
Fuel Injectors

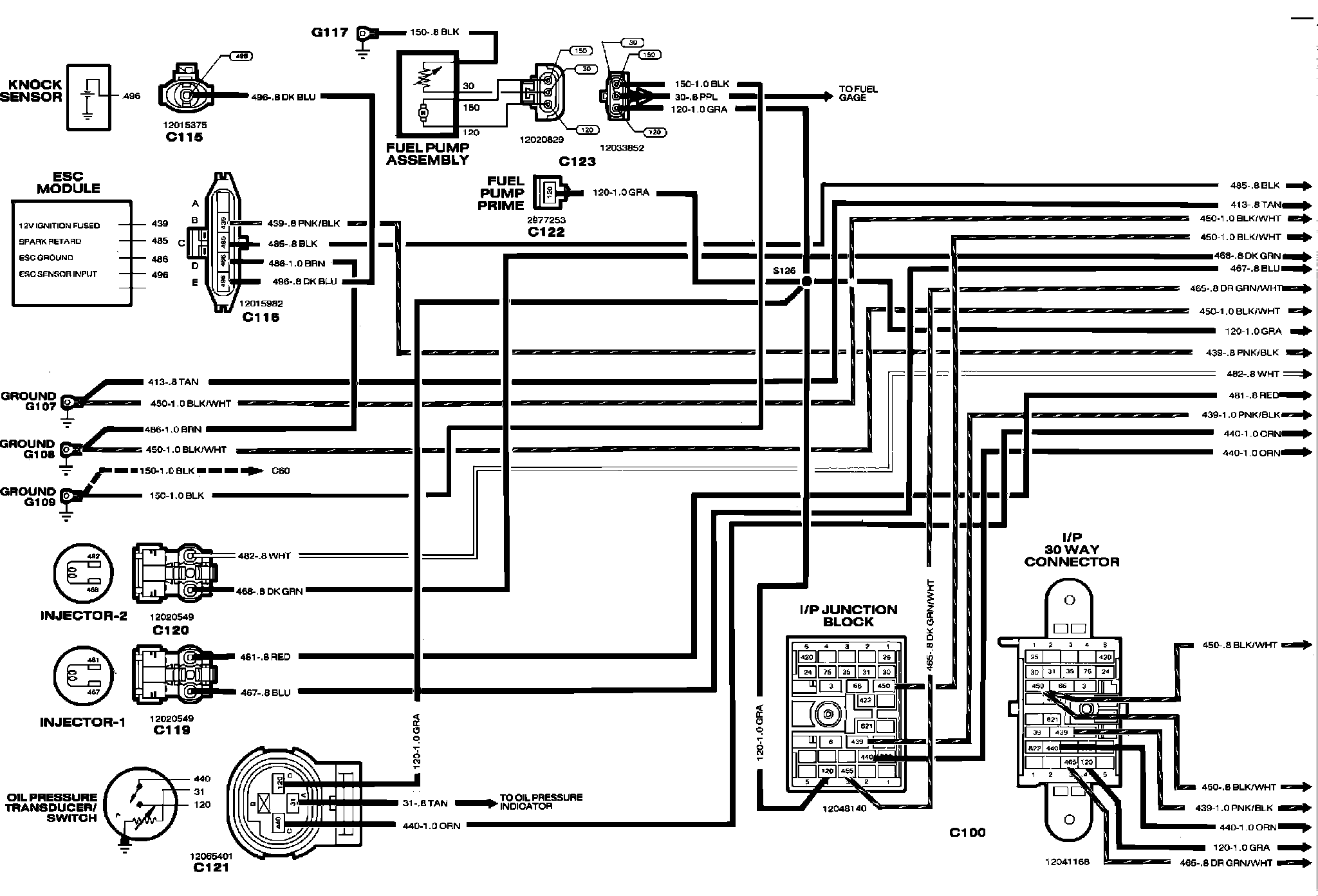

Fuel Pump Controls: Injector Controls:

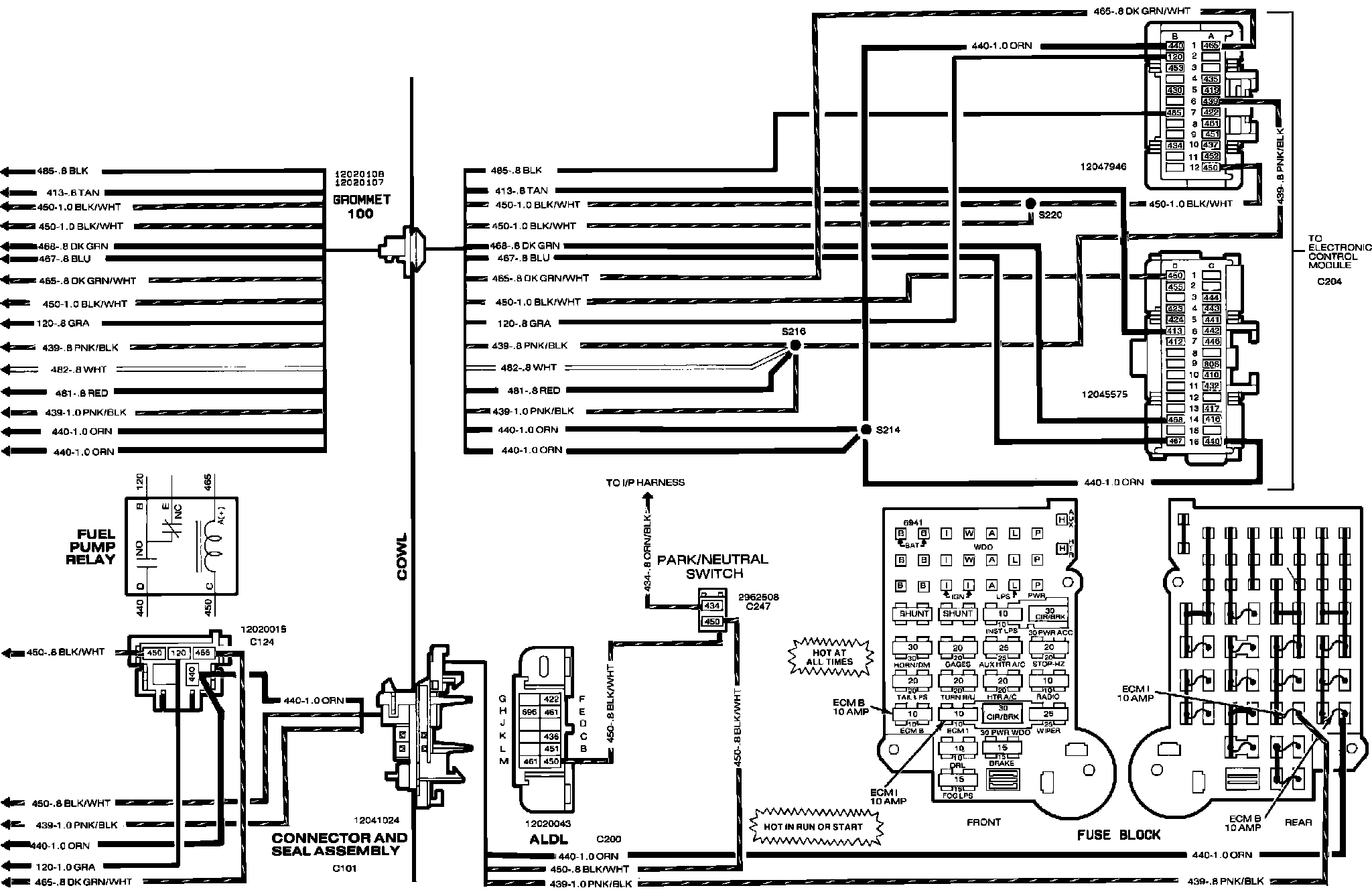

Fuel Pump Controls: Injector Controls:
