Chevy Truck
>>
1990
>>
Astro Van L AWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

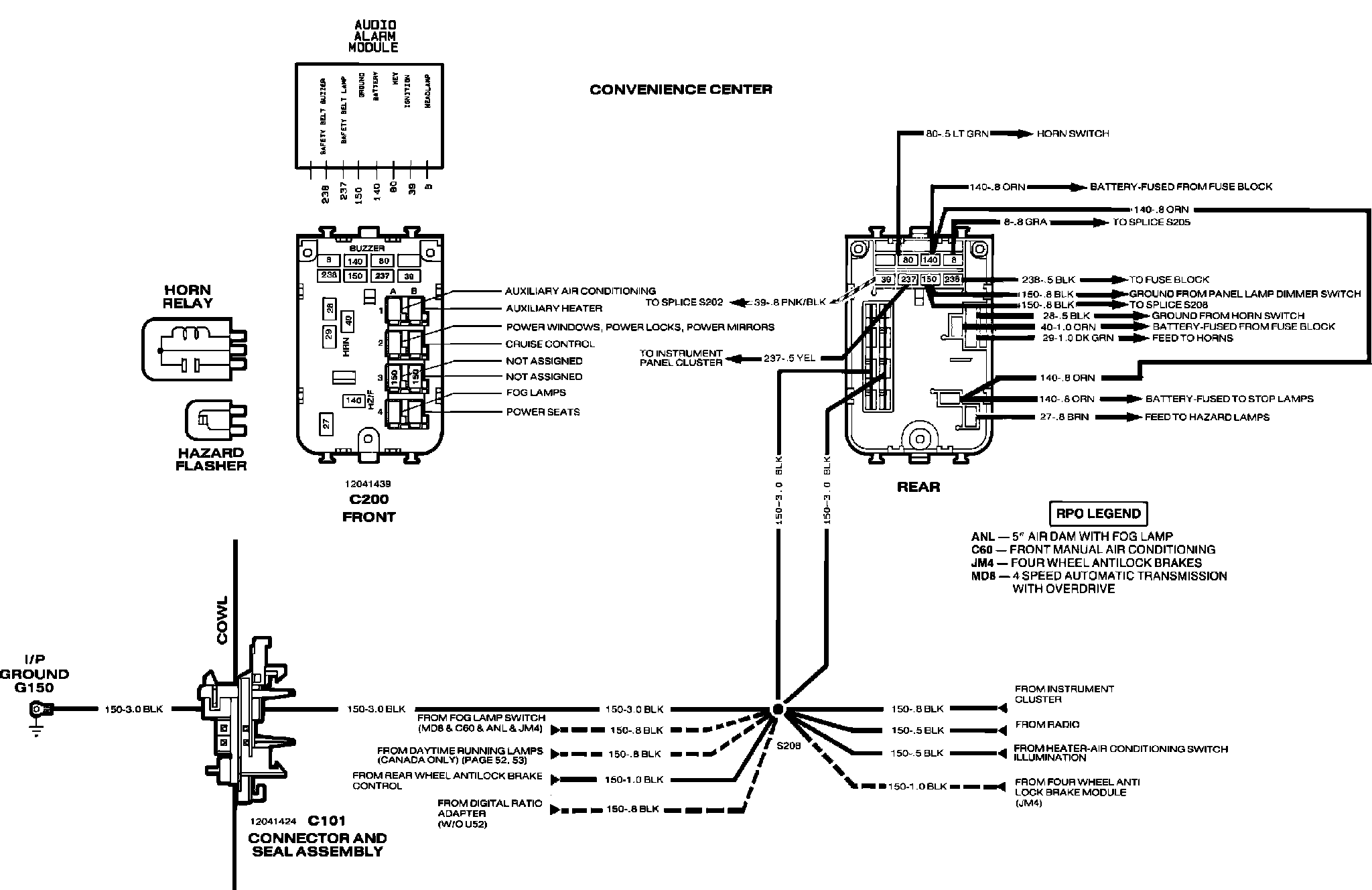

Convenience Center Details
Convenience Center Details
Convenience Center:
