High or Low Temperature Control Effort - Without A/C
High or Low Temperature Control Effort - Without A/C
Heater Control Diagnosis:
For information regarding "
Heater Control

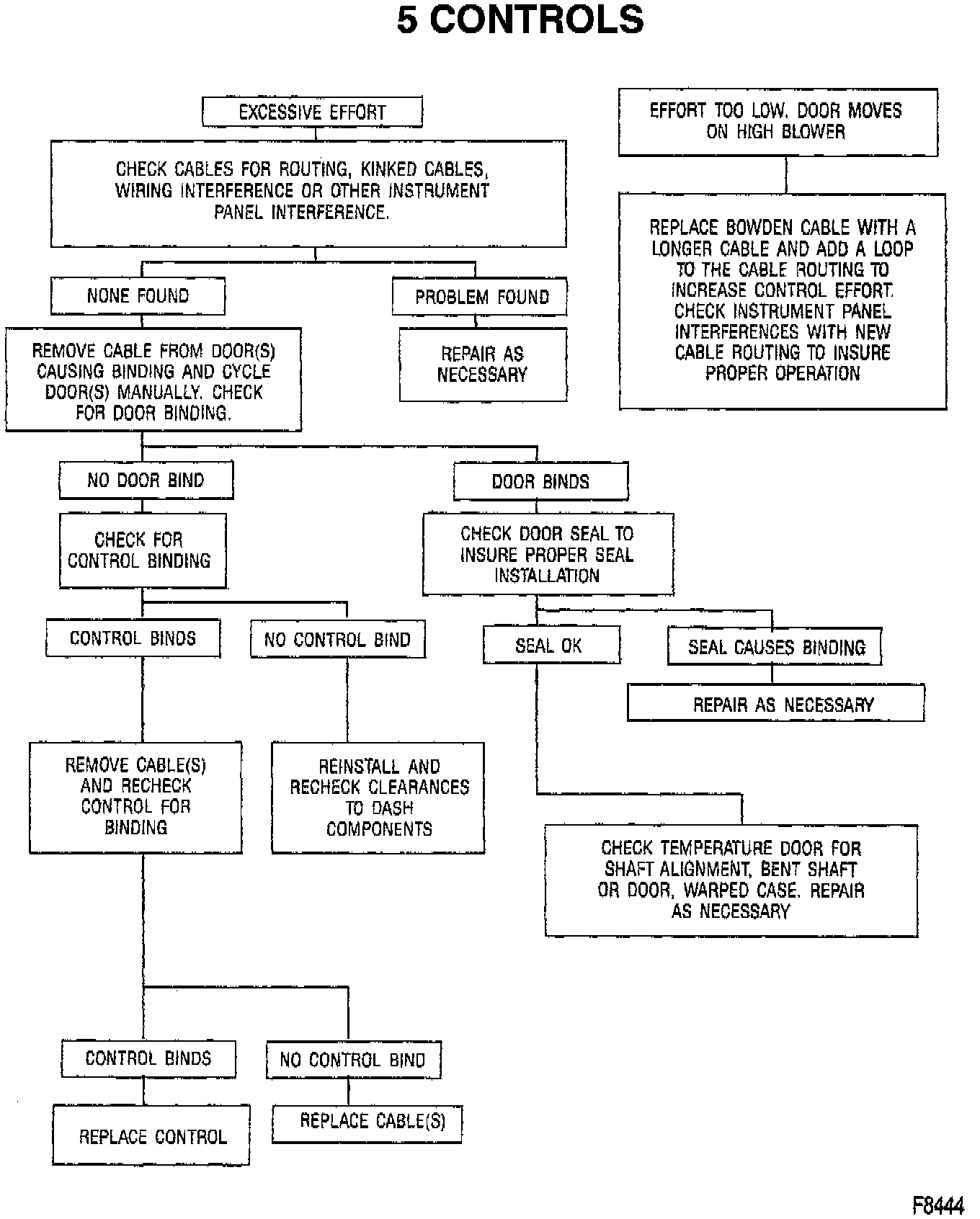

Diagnosis" refer to Chart 5 (Controls).
