Blower Motor Inoperative (Any Speed)

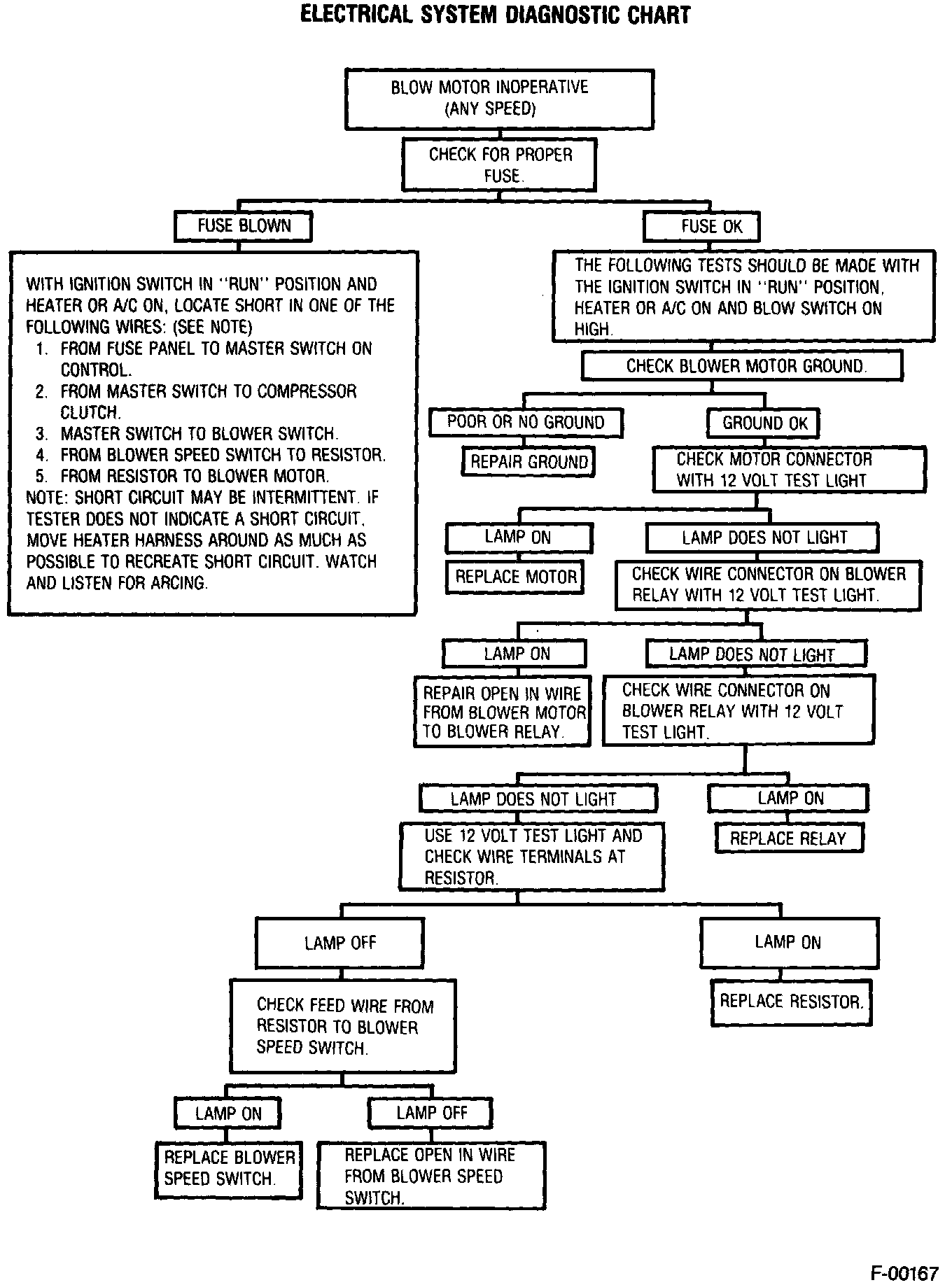

Electrical System Diagnostic Chart Part 1 Of 2:

When diagnosing problems in the blower electrical system, refer to Chart.

If you need more tests, refer to Blower Motor / Testing. Testing and Inspection
