Home >> Chevy Truck >> 1990 >> Astro Van L AWD V6-262 4.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Heater >> Less A/C

Less A/C

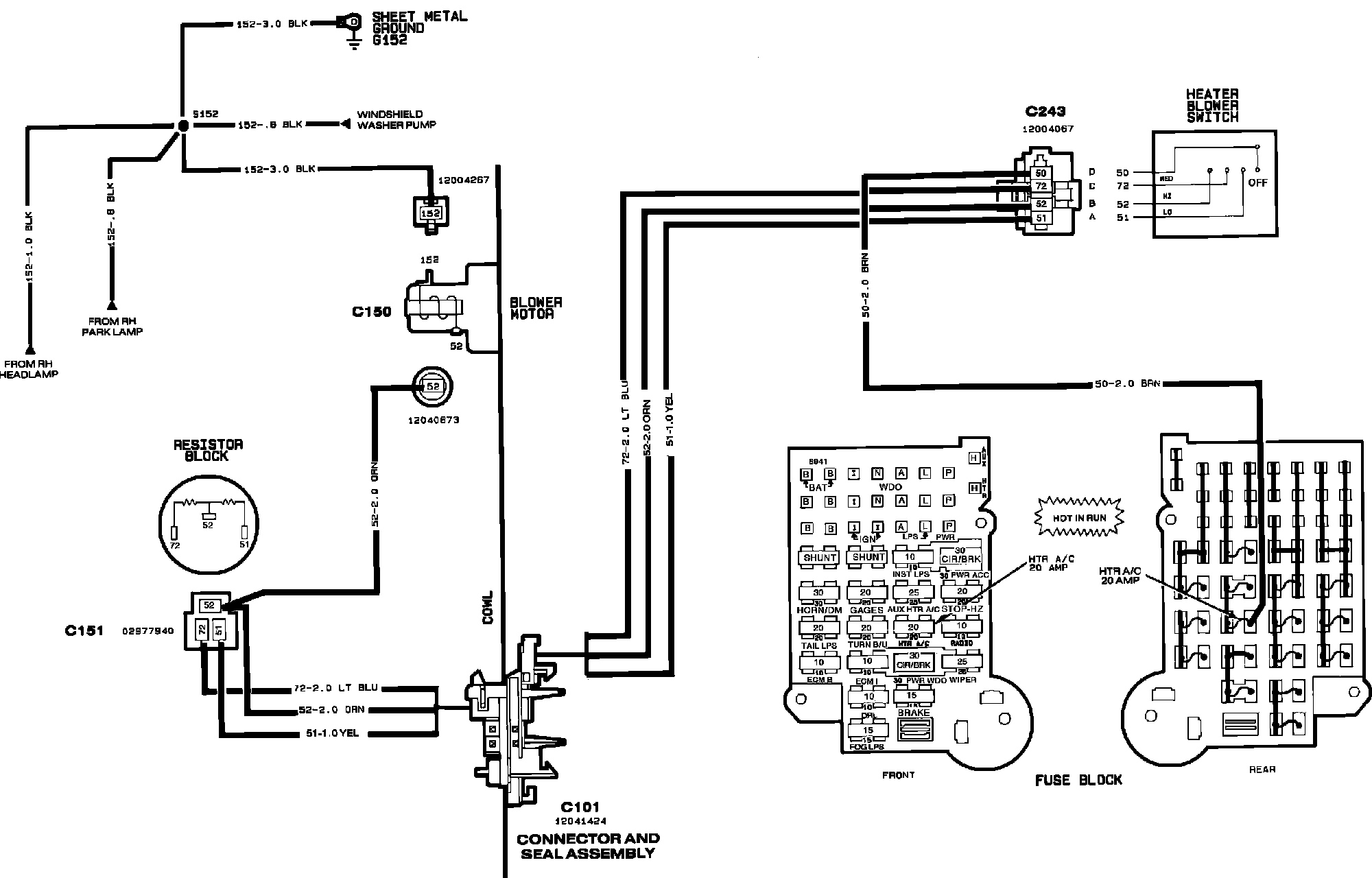

Heater: Less A/C:
