Chevy Truck
>>
1990
>>
Astro Van L AWD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Heater
>>
Auxiliary
Auxiliary

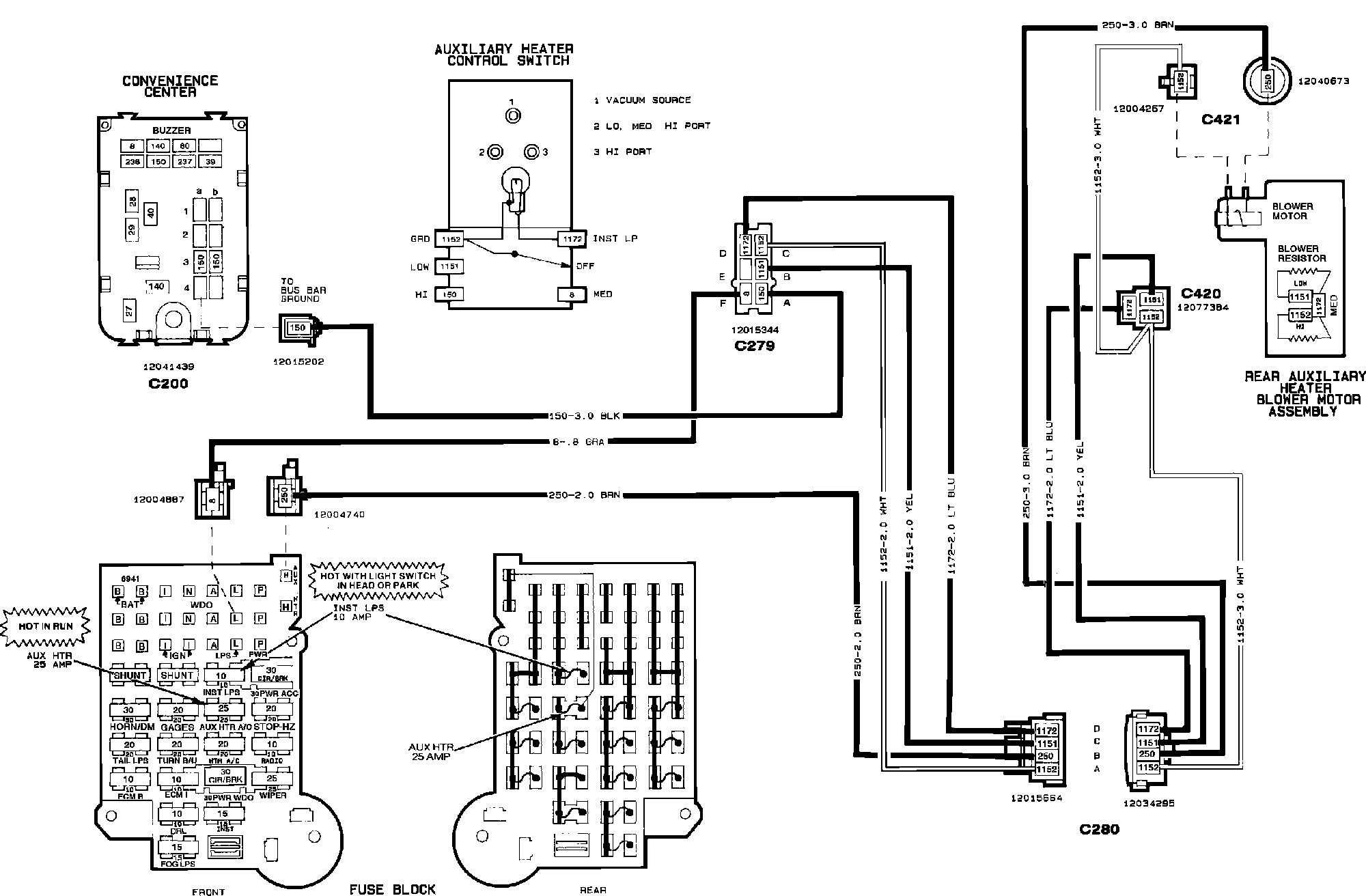

Heater: Auxiliary:
