Home >> Chevy Truck >> 1990 >> Astro Van L AWD V6-262 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor HVAC >> Front >> Part Two

Part Two

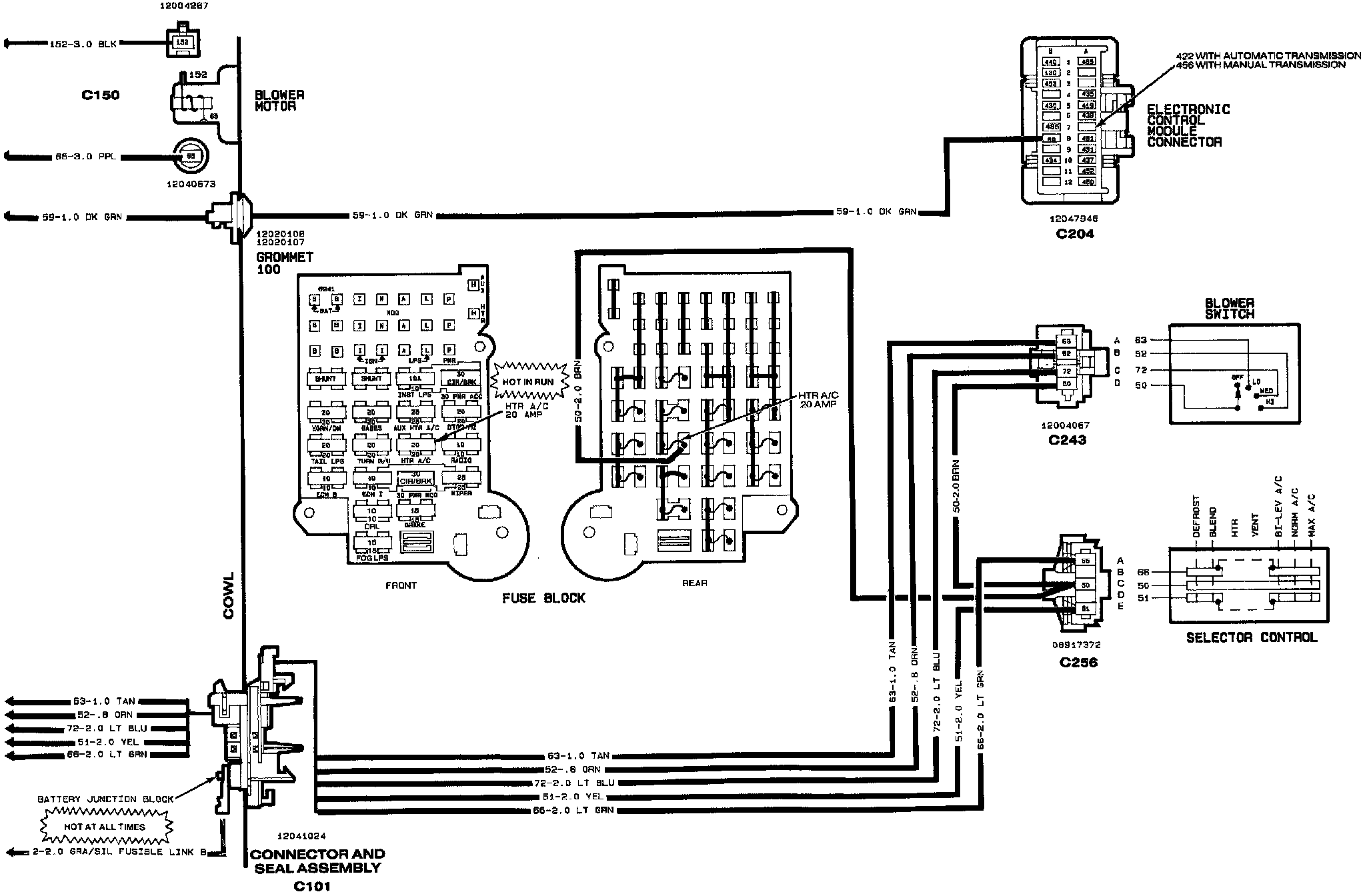

Air Conditioning (part 2 Of 2):
