Chevy Truck
>>
1985
>>
Suburban 3/4 Ton 4WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Light Duty Except CA
Light Duty Except CA

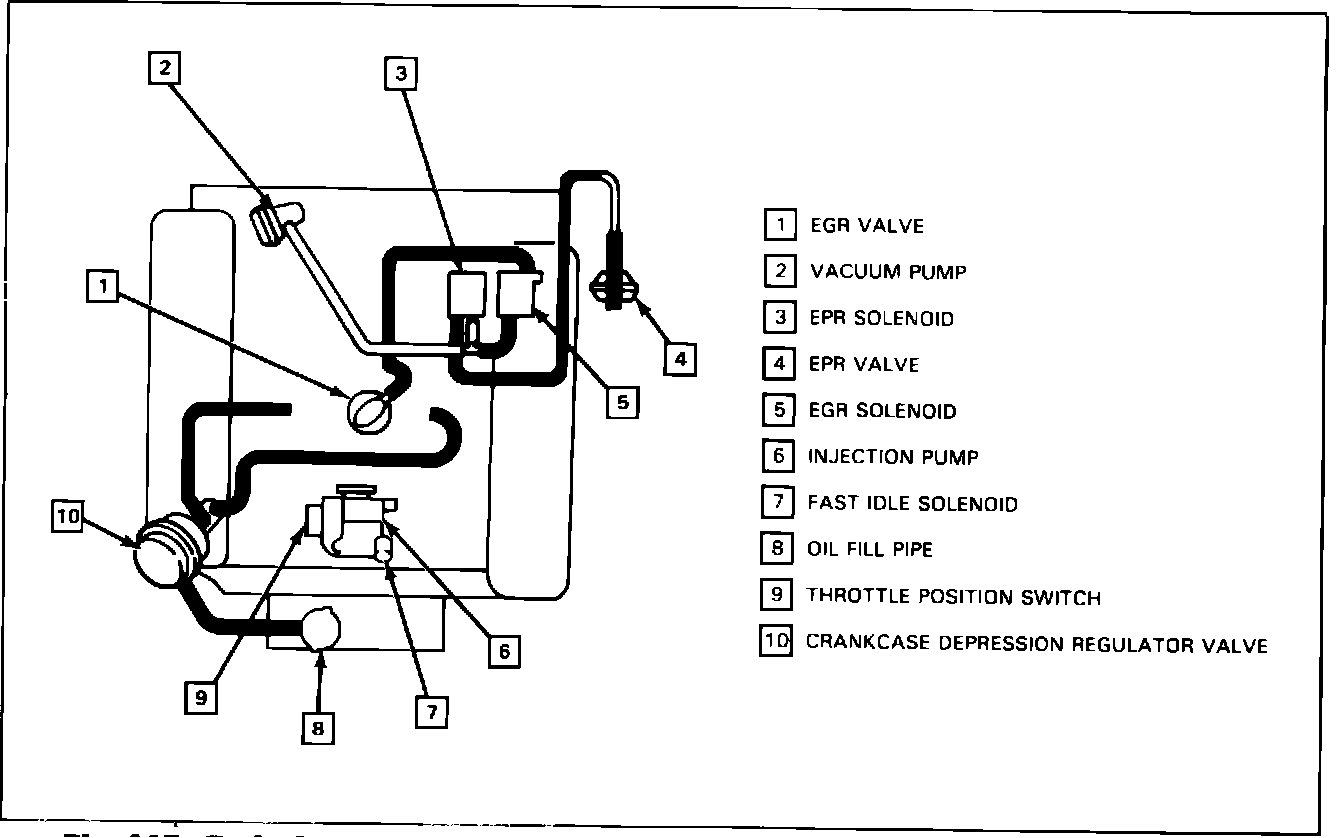

Fig. 115 Emission components locations. V8-379 Diesel C & K Series light duty emissions; 1985 except Calif.; 1986-87 All:
