Exhaust Pressure Regulator Vacuum Valve: Testing and Inspection

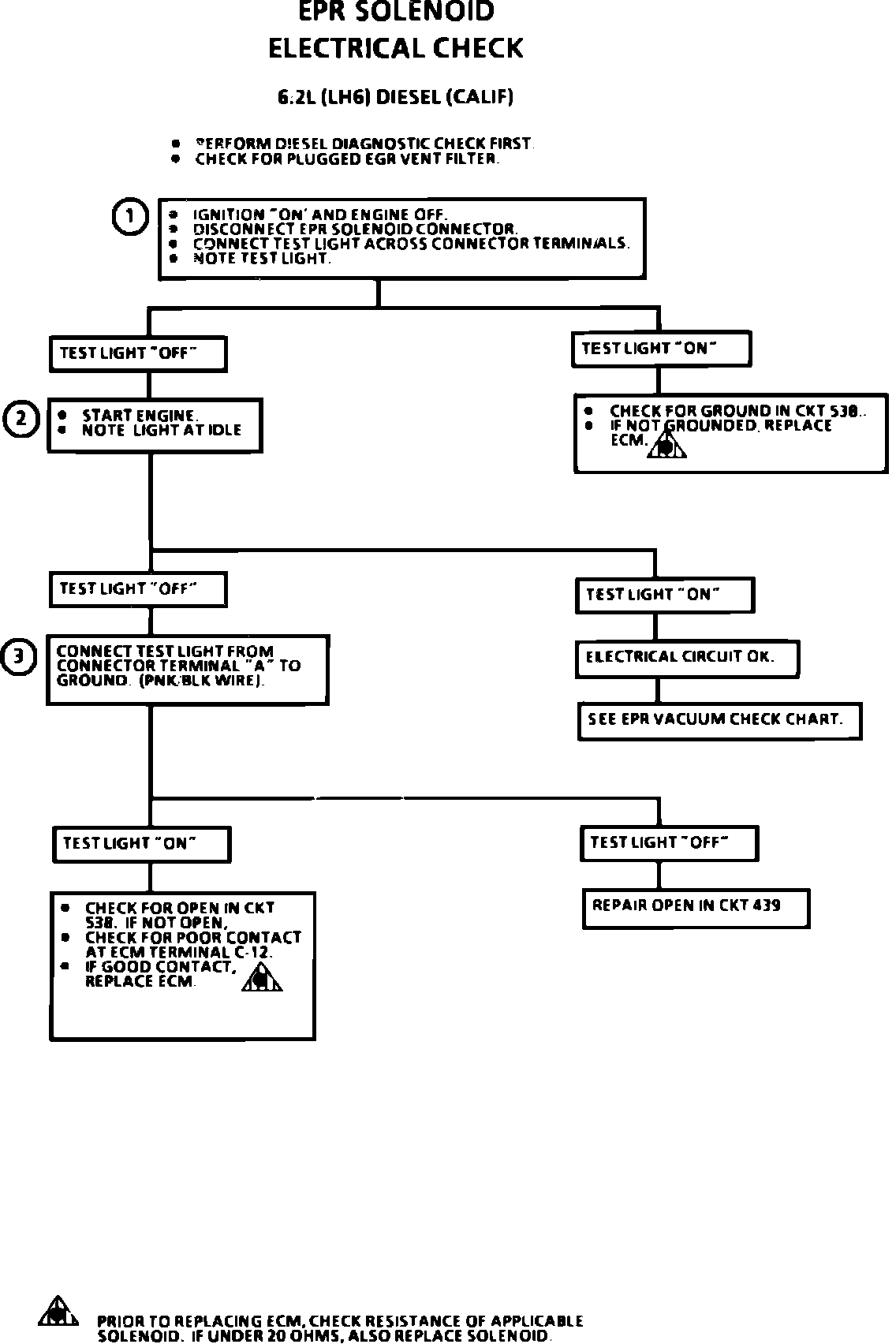

Fig. 25 EPR solenoid electrical check. 1985:
