Chevy Truck
>>
1985
>>
S10/T10 P/U 4WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Speaker System
Speaker System

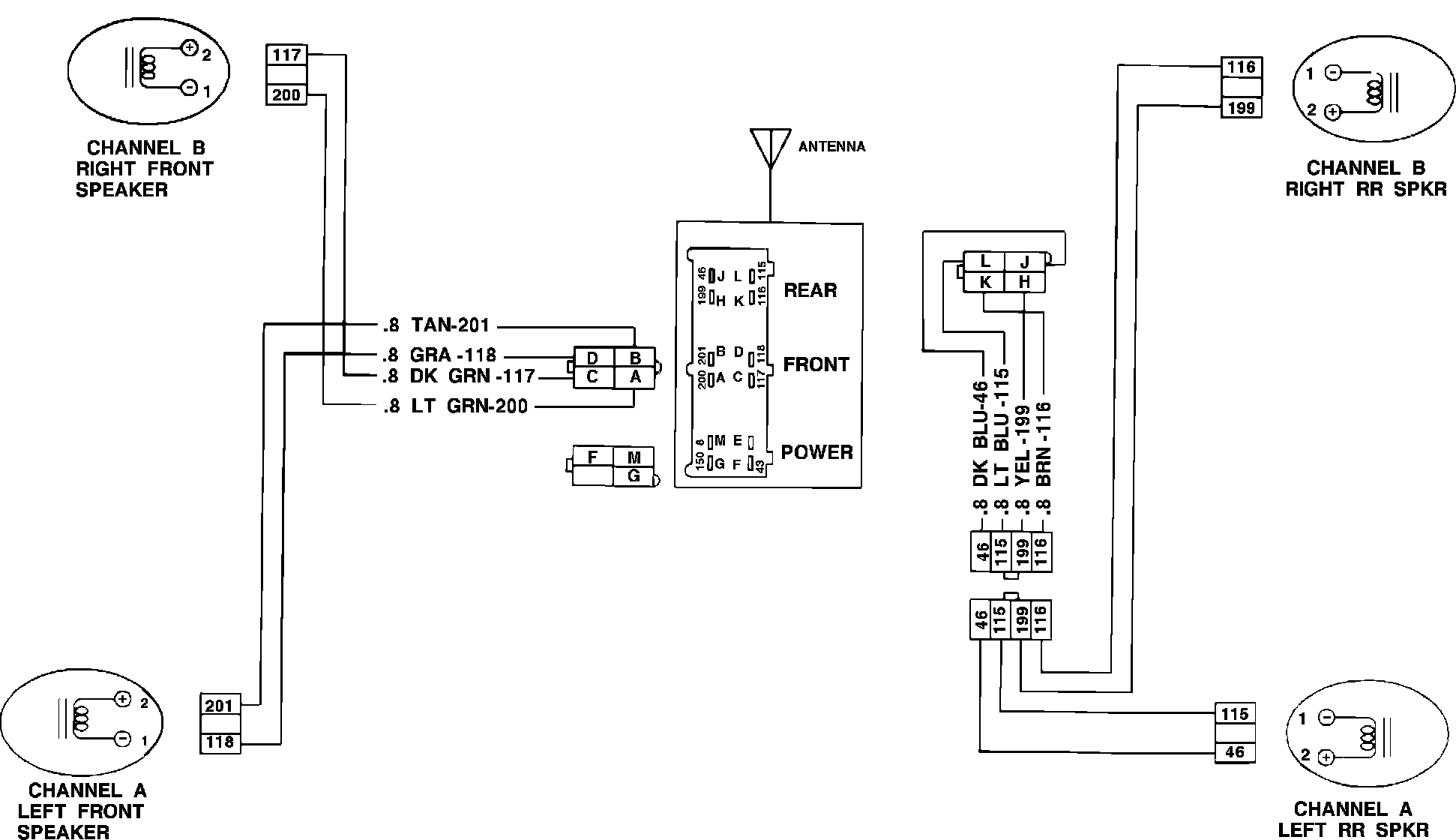

Radio & Speaker Wiring Circuit. Stereo:
