Oil Cooler: Service and Repair

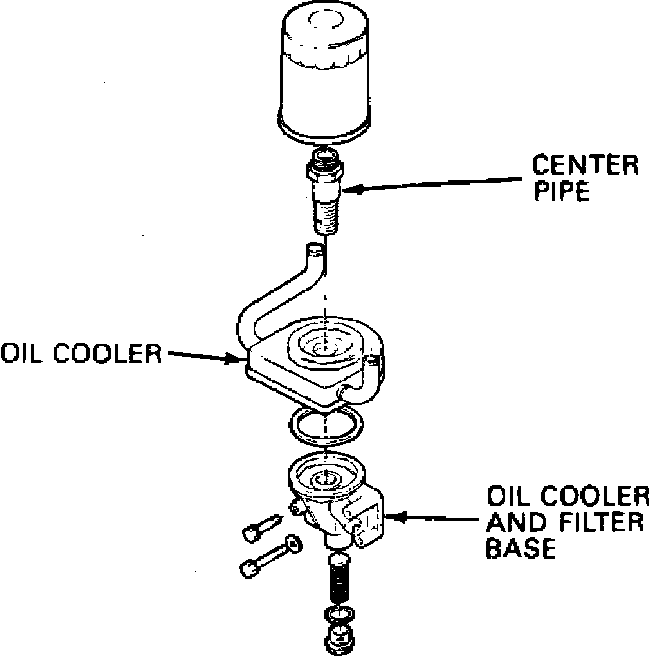

Fig. 27 Oil cooler assembly:

1. Disconnect battery ground cable.
2. Disconnect cooler hoses, Fig. 27.
3. Remove oil filter and center pipe.
4. Remove oil cooler. If oil cooler and filter base are to be removed, raise and support vehicle to gain access to retaining bolts.
5. Reverse procedure to install.
