Chevy Truck
>>
1985
>>
S10/T10 P/U 2WD L4-119 1.9L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
Chart A-6 Won't Flash Code 12
Chart A-6 Won't Flash Code 12

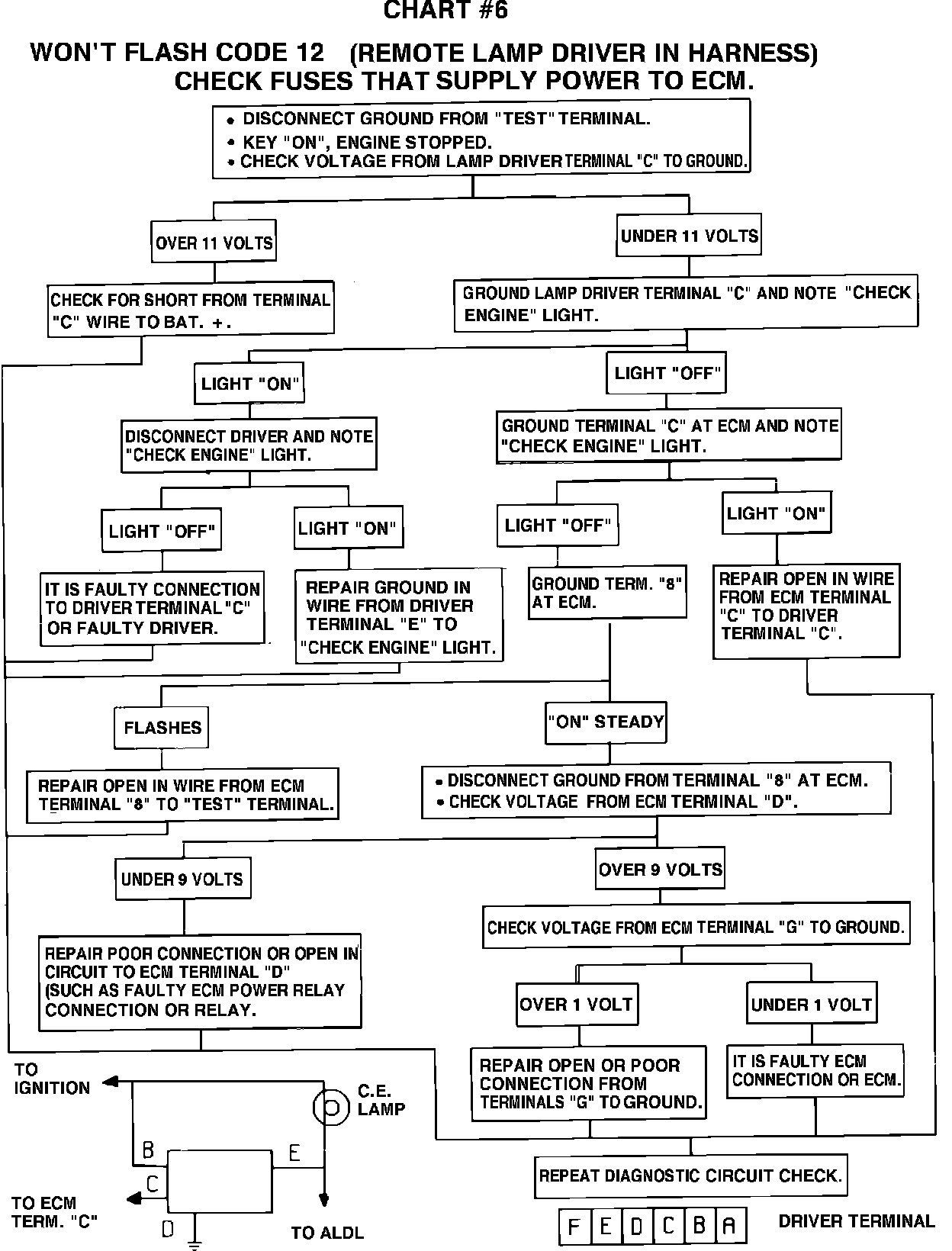

Fig. 14 Chart No. 6 diagnosis:
