Home
>>
Chevy Truck
>>
1985
>>
K 10 P/U 4WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Engine Controls
>>
Federal Vehicles
Federal Vehicles

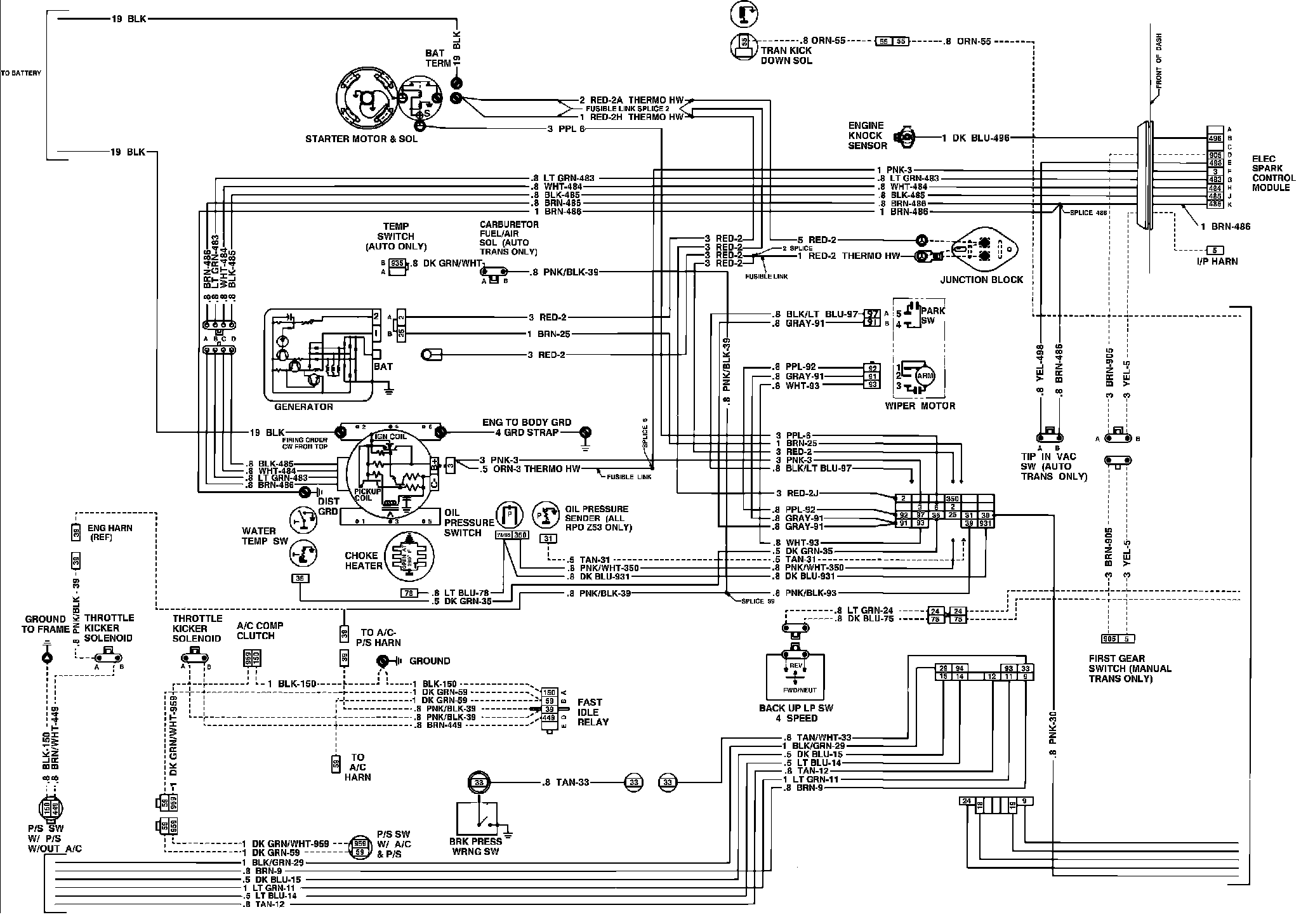

Engine Wiring Circuit. Federal:
