Chevy Truck
>>
1985
>>
G 20 Van V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Locations
>>
Heavy Duty Emissions
Heavy Duty Emissions

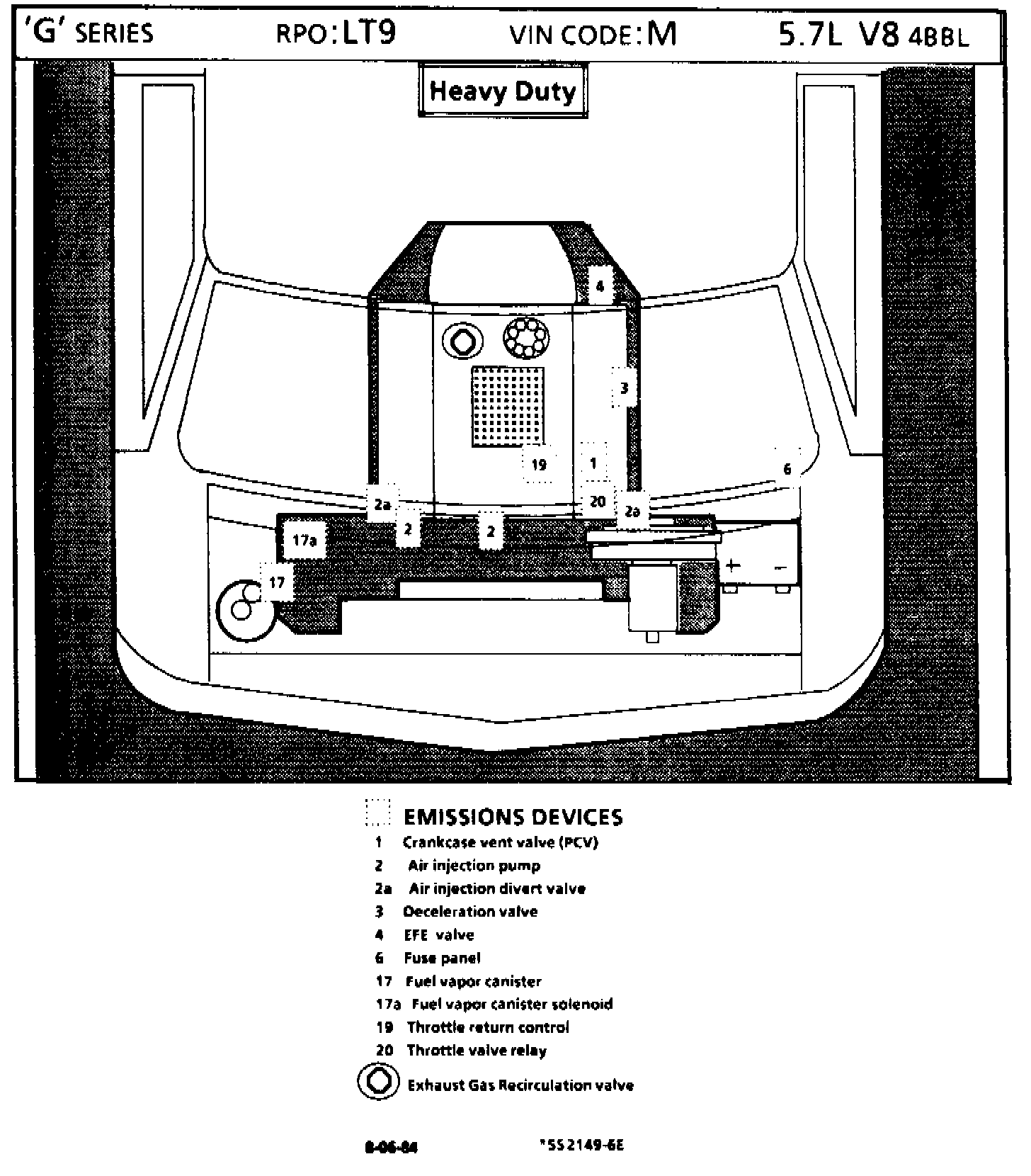

Figure 12 Component Locations - 5.7L (G Series) - Heavy Duty Emissions:
