Chevy Truck
>>
1985
>>
G 10 Van V6-262 4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Manual
Manual

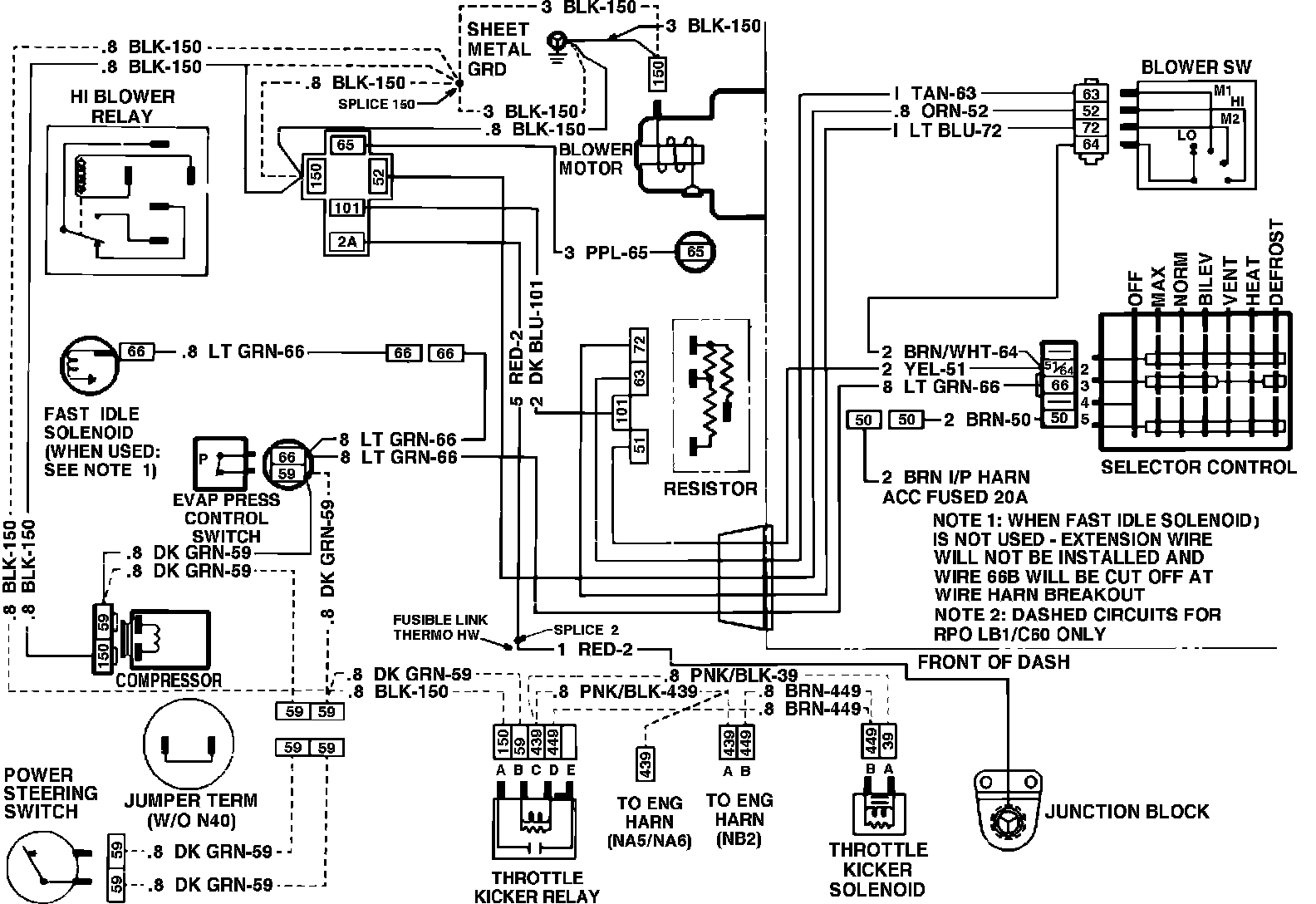

Air Conditioning & Heater Wiring Circuit. Manual:
