Chevy Truck
>>
1985
>>
EL Camino V6-262 4.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
Spark Control
Spark Control

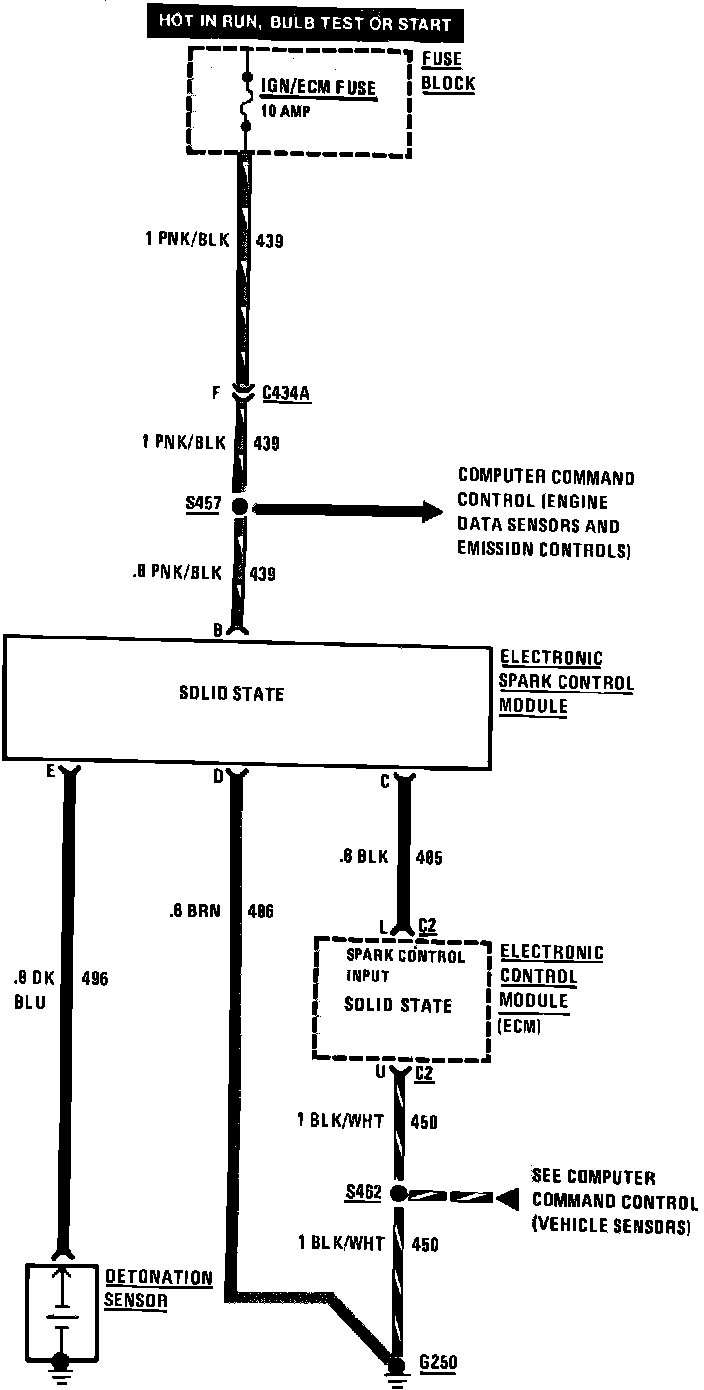

Fig. 56 Computer Command Control (Spark Control) Wiring Circuit.:
