Emission Controls & Engine Data Sensors
Emission Controls & Engine Data Sensors

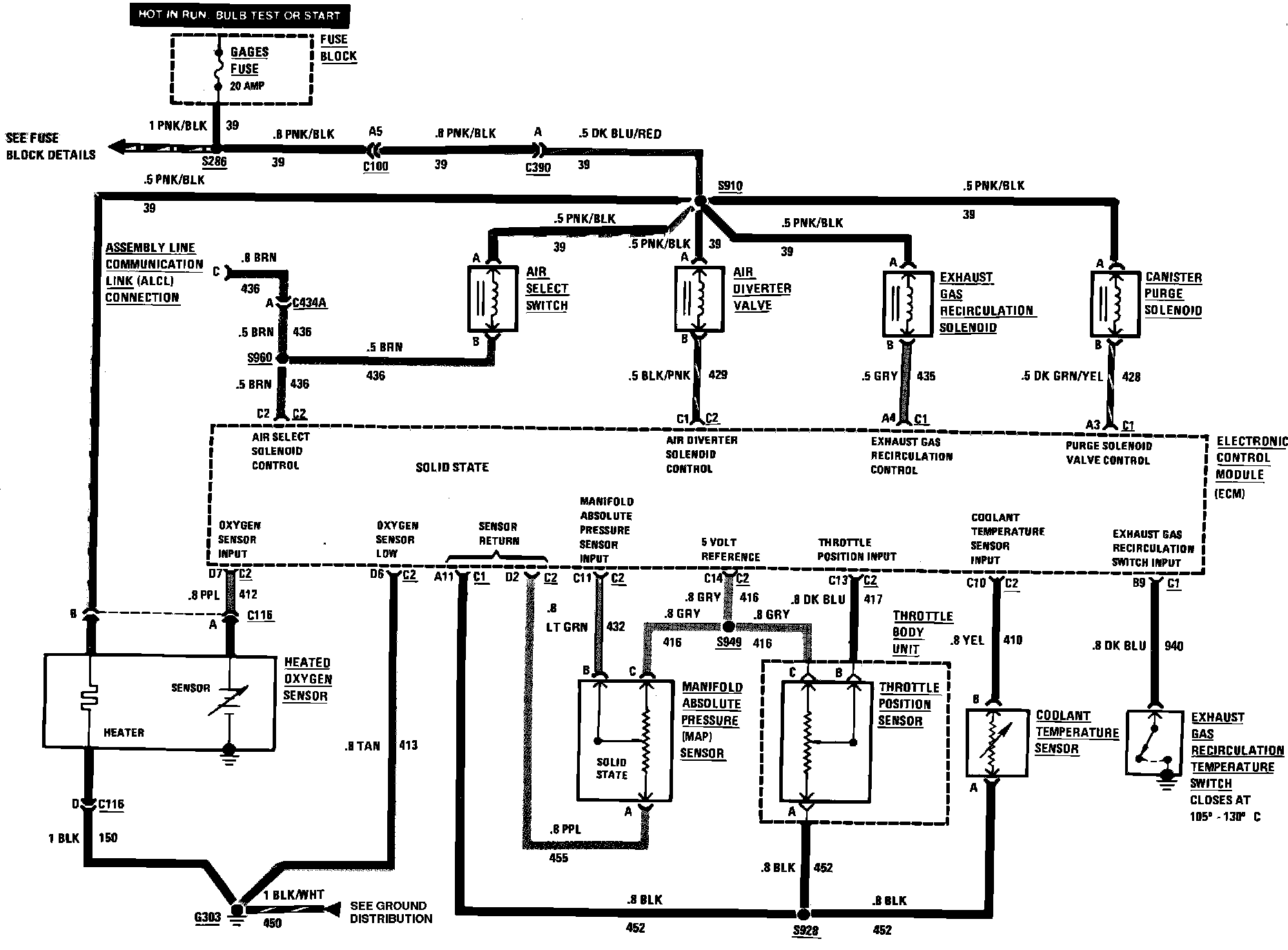

Fig. 51 Computer Command Control (Emission Controls & Engine Data Sensors) Wiring Circuit.:
