Chevy Truck
>>
1985
>>
EL Camino V6-262 4.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

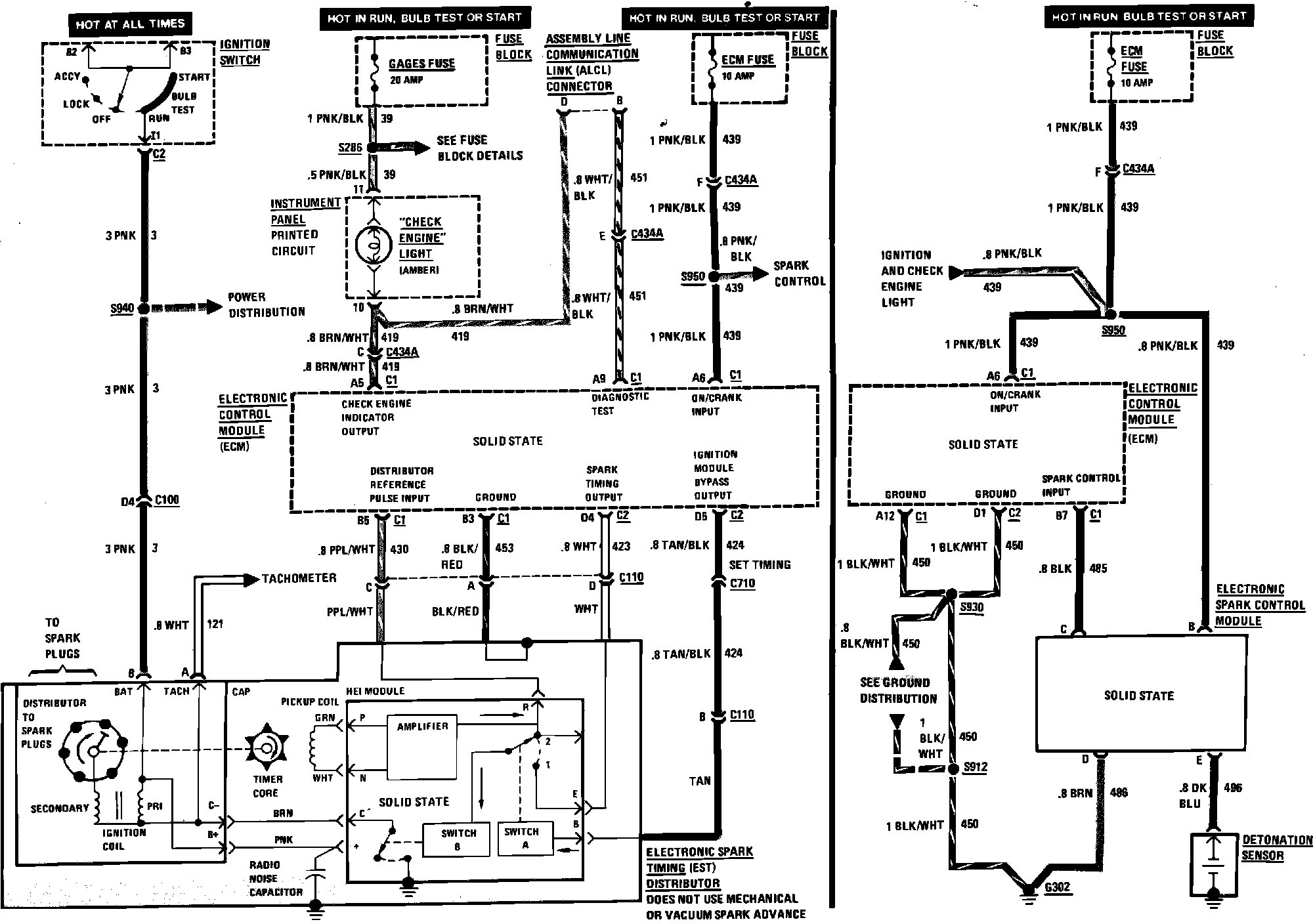

Fig. 45 Computer Command Control (Check Engine Light, Ignition & Spark Control) Wiring Circuit.:
