Chevy Truck
>>
1985
>>
EL Camino V6-262 4.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Heater Control Wiring Circuit
Heater Control Wiring Circuit

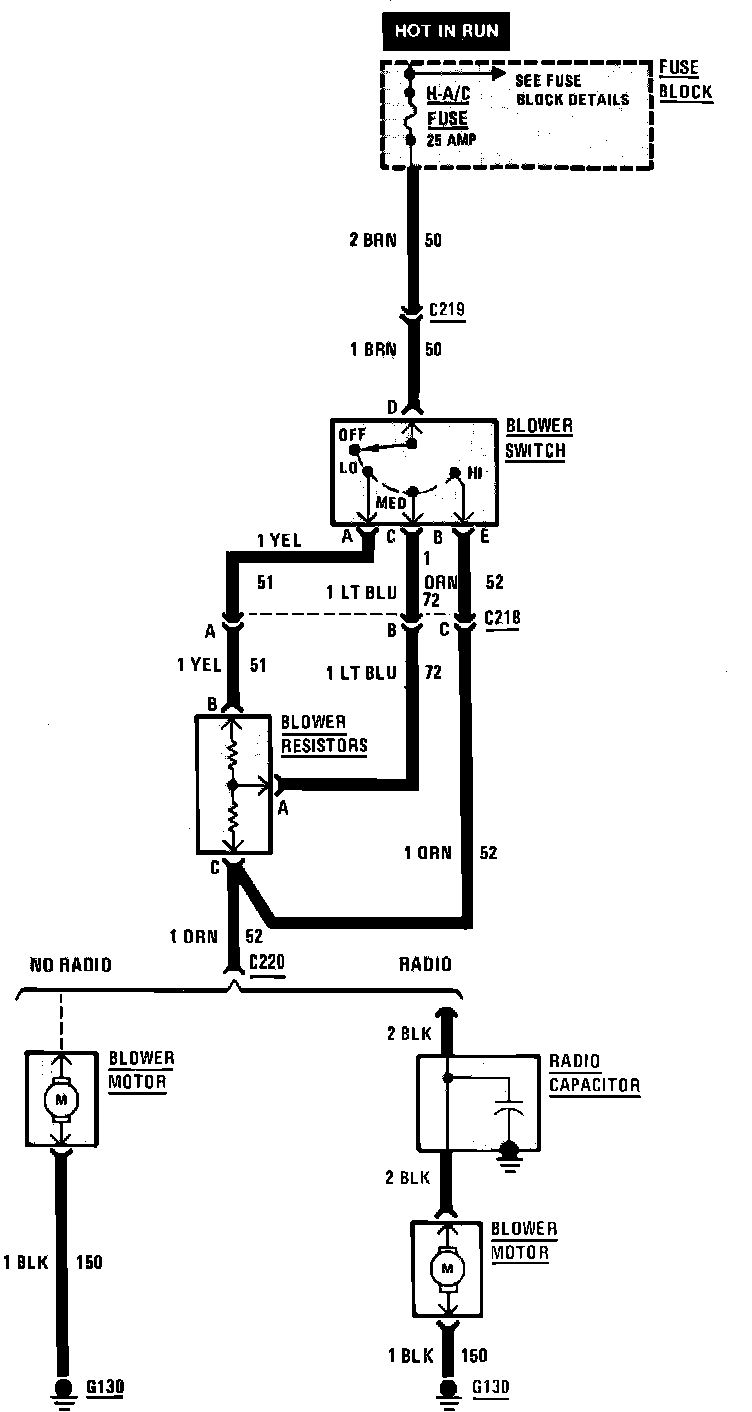

Fig. 115 Heater Control Wiring Circuit.:
