Cruise Control
Cruise Control

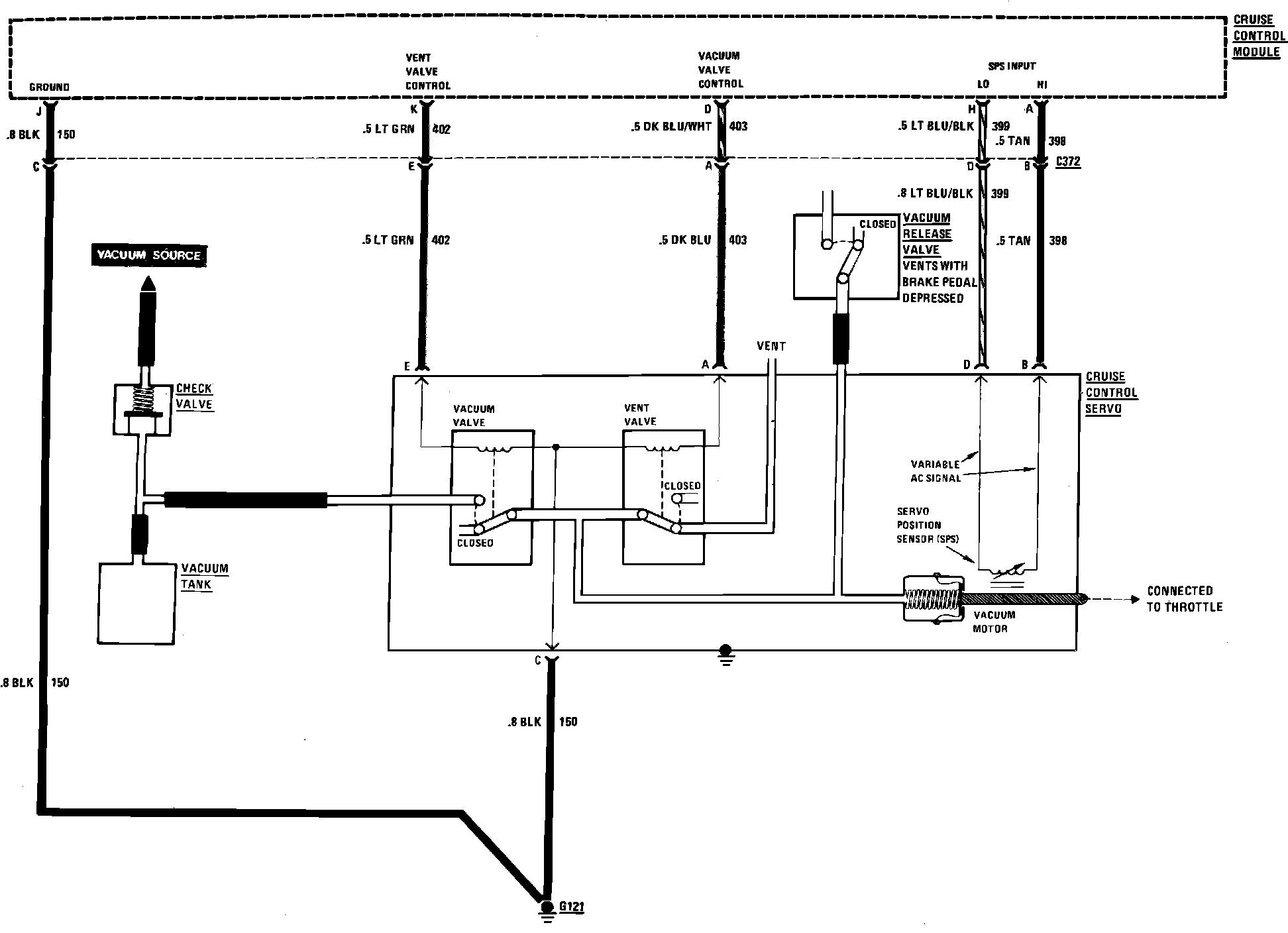

Fig. 75 Cruise Control Vacuum Circuit.:

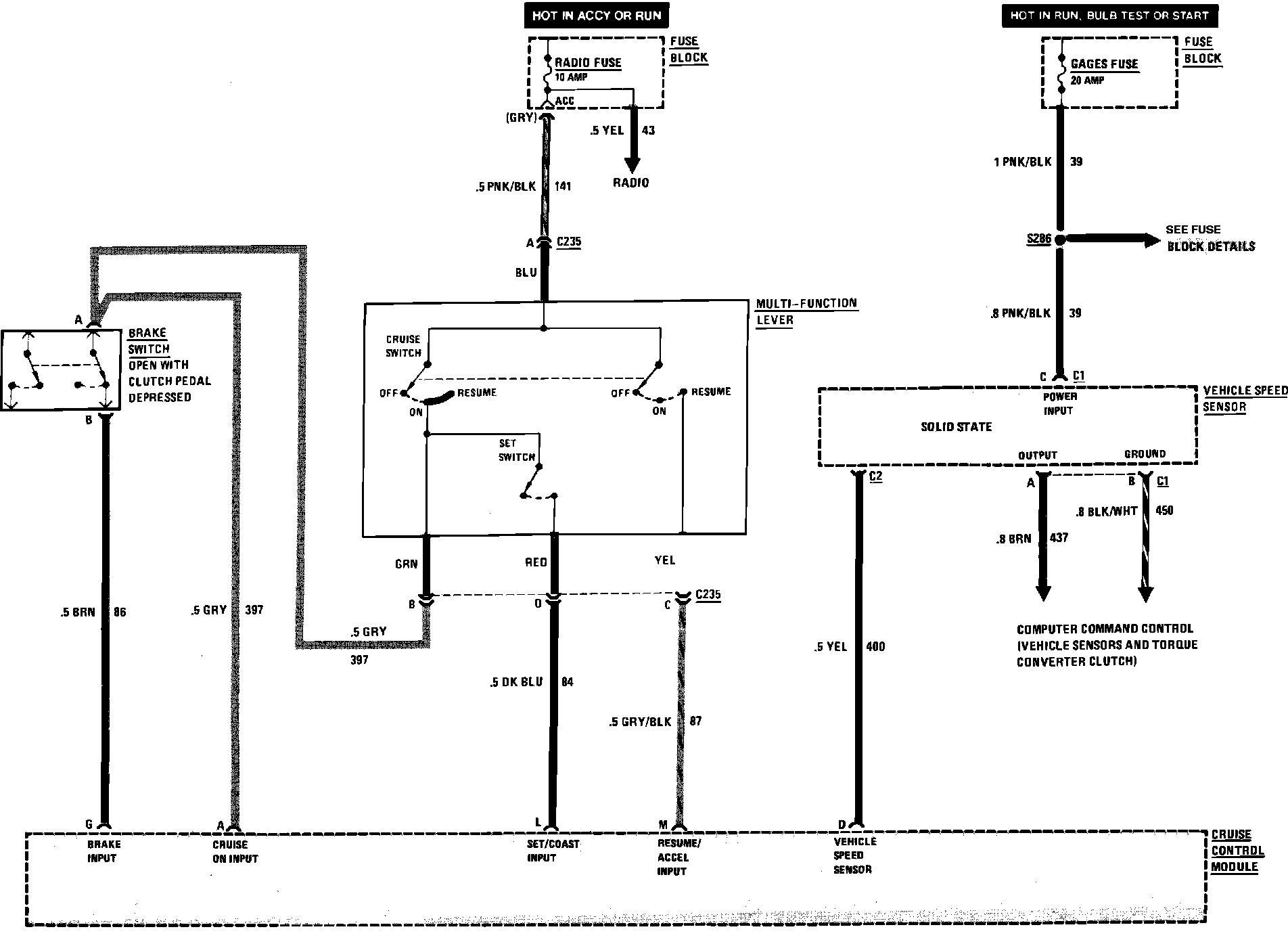

Fig. 78 Cruise Control Wiring Circuit.:
