Power Window Wiring Circuit Less Power Door Locks
>>
4 Door
4 Door

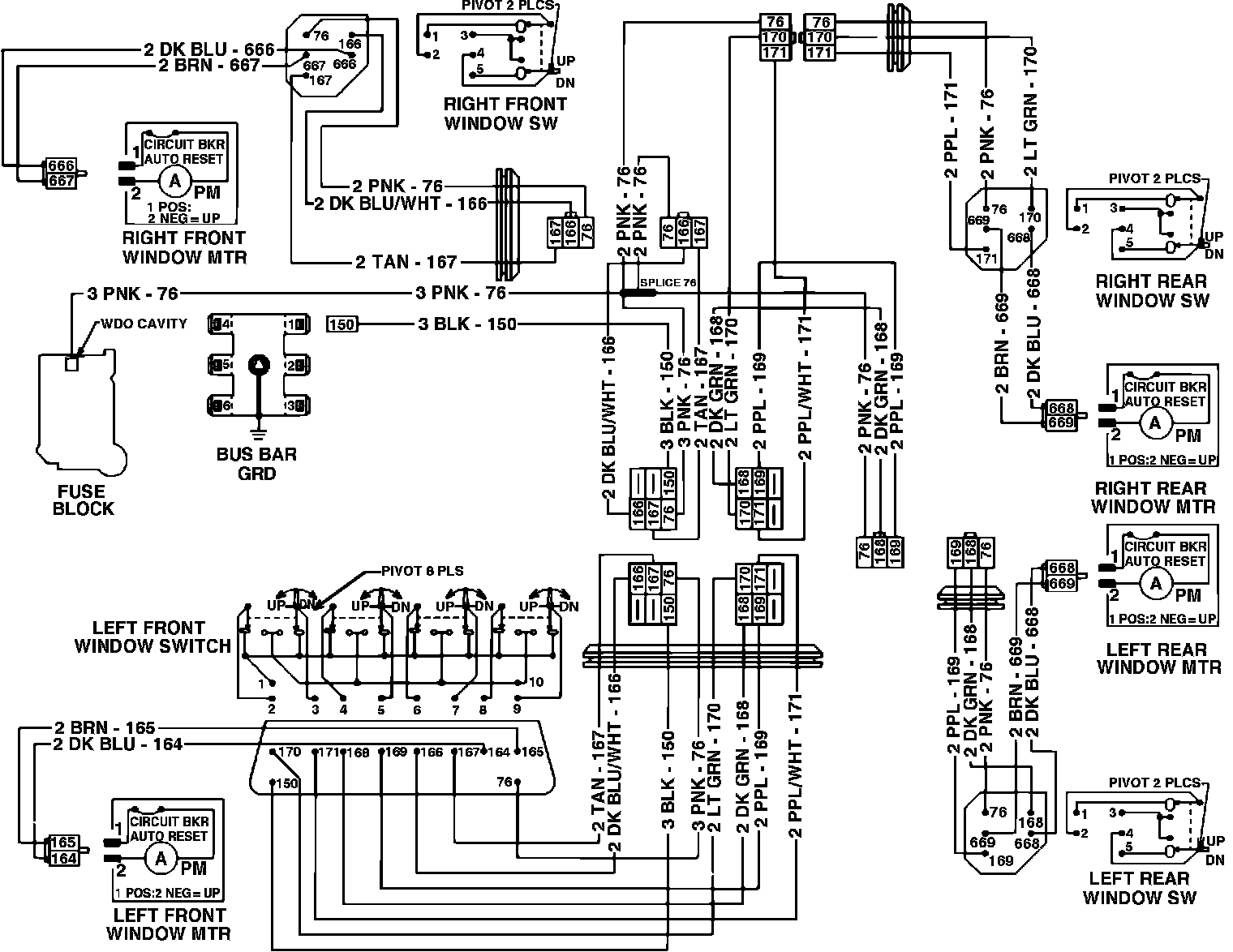

Power Window Wiring Circuit. 4 Door:
