Chevy Truck
>>
1985
>>
C 20 P/U 2WD L6-292 4.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
With Power Windows
>>
4 Door
4 Door

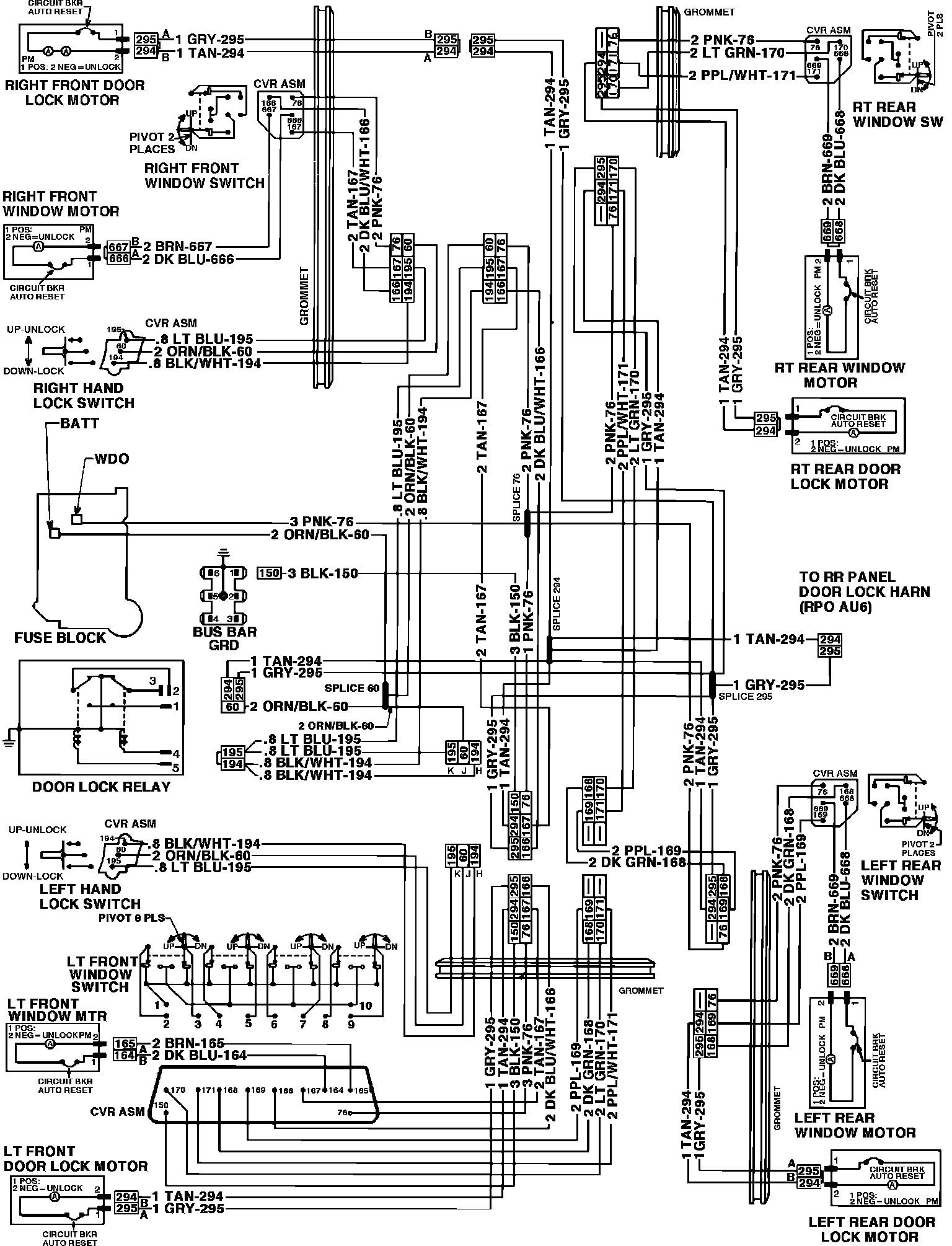

Power Door Lock & Window Wiring Circuit. 4 Door:
