Chevy Truck
>>
1985
>>
C 10 P/U 2WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Light Duty CA
Light Duty CA

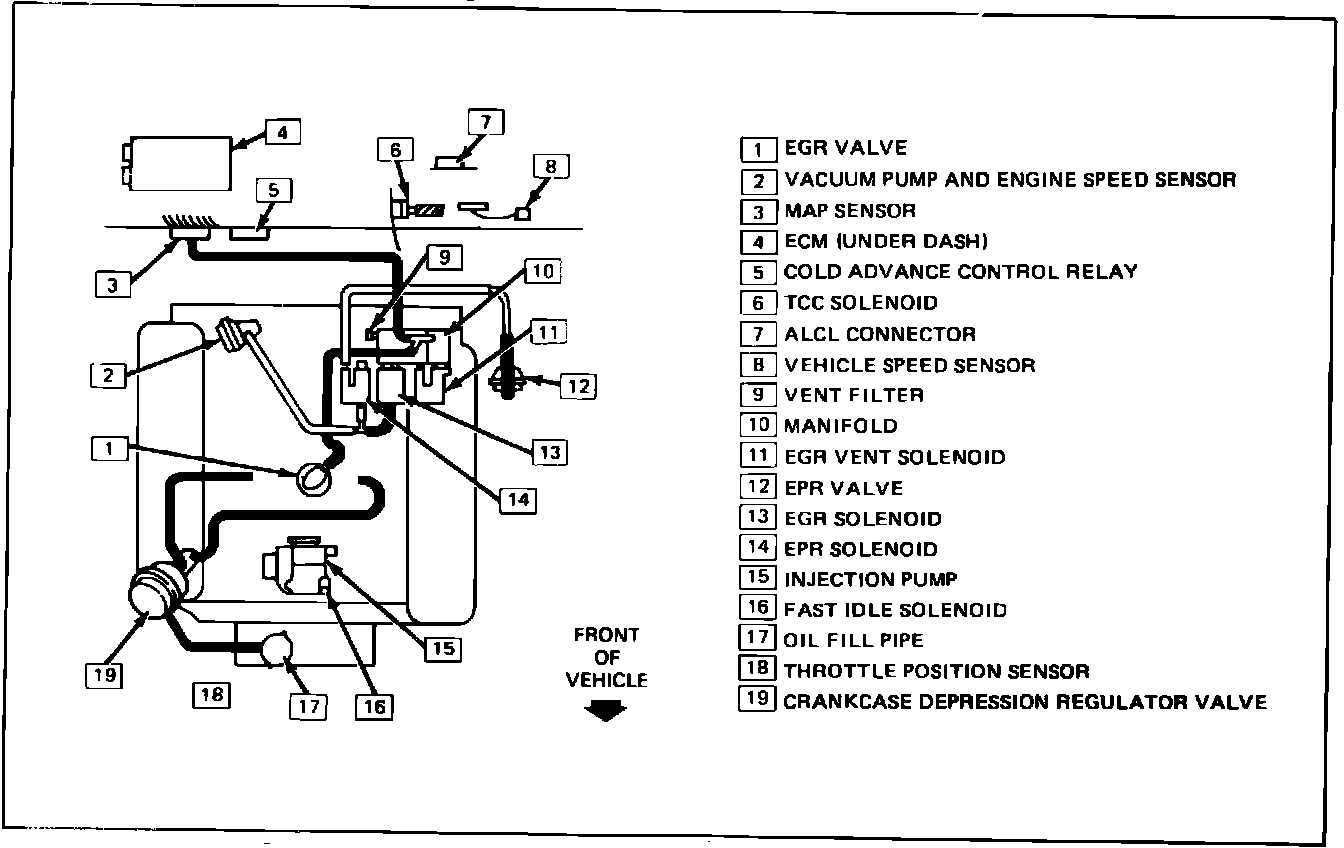

Fig. 116 Emission components locations. 1985 V8-379 Diesel C & K Series light duty emissions Calif.:
