Chevy Truck
>>
1985
>>
C 10 P/U 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Controls
>>
C Models California
C Models California

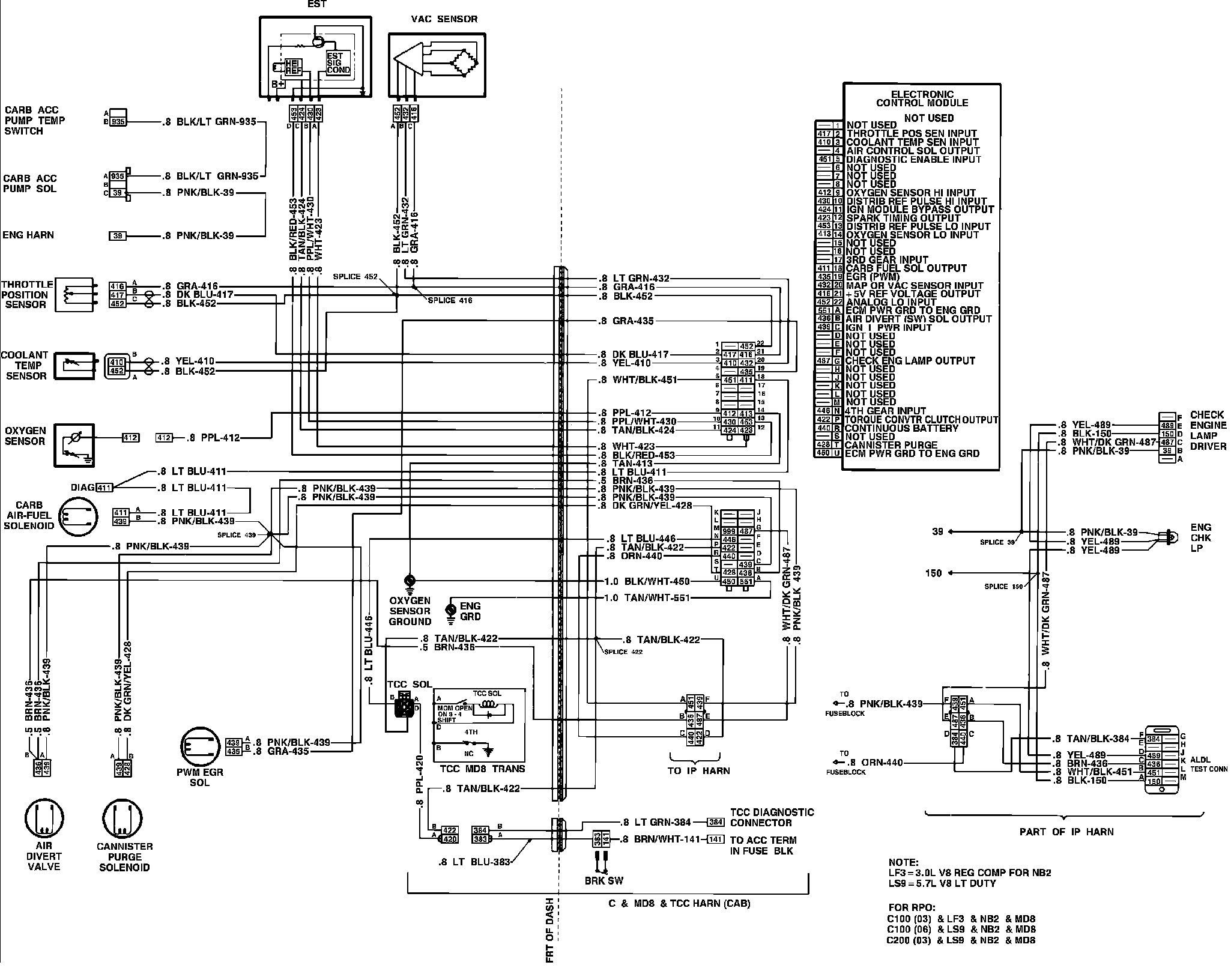

Engine Wiring Circuit. California:
