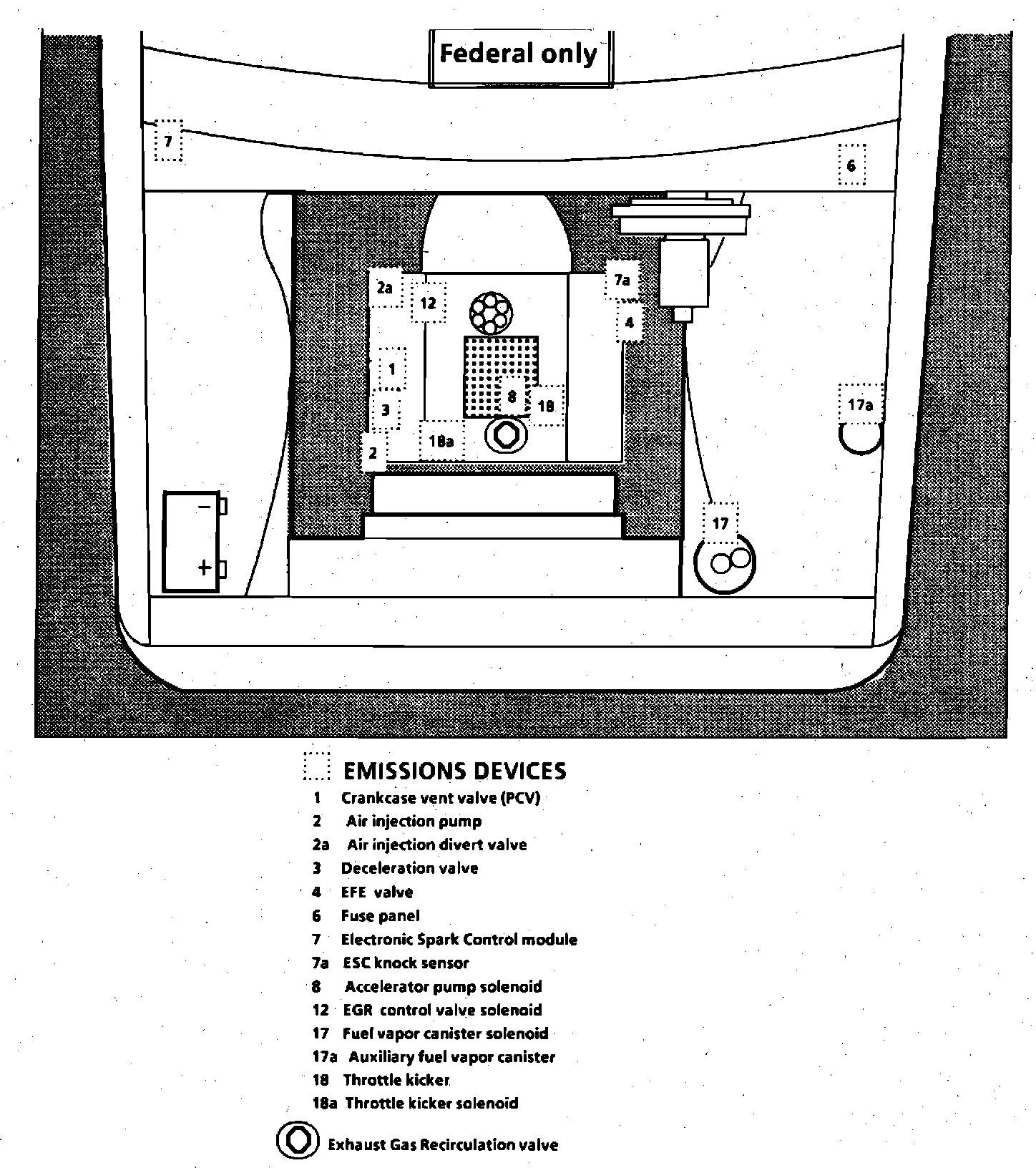

Underhood & Engine Components:
RH Side Of Dash Panel
Applicable to: 1985 CK Series w/4.3L Except California
