Overspeed Warning
>>
Without Cruise Control
Without Cruise Control

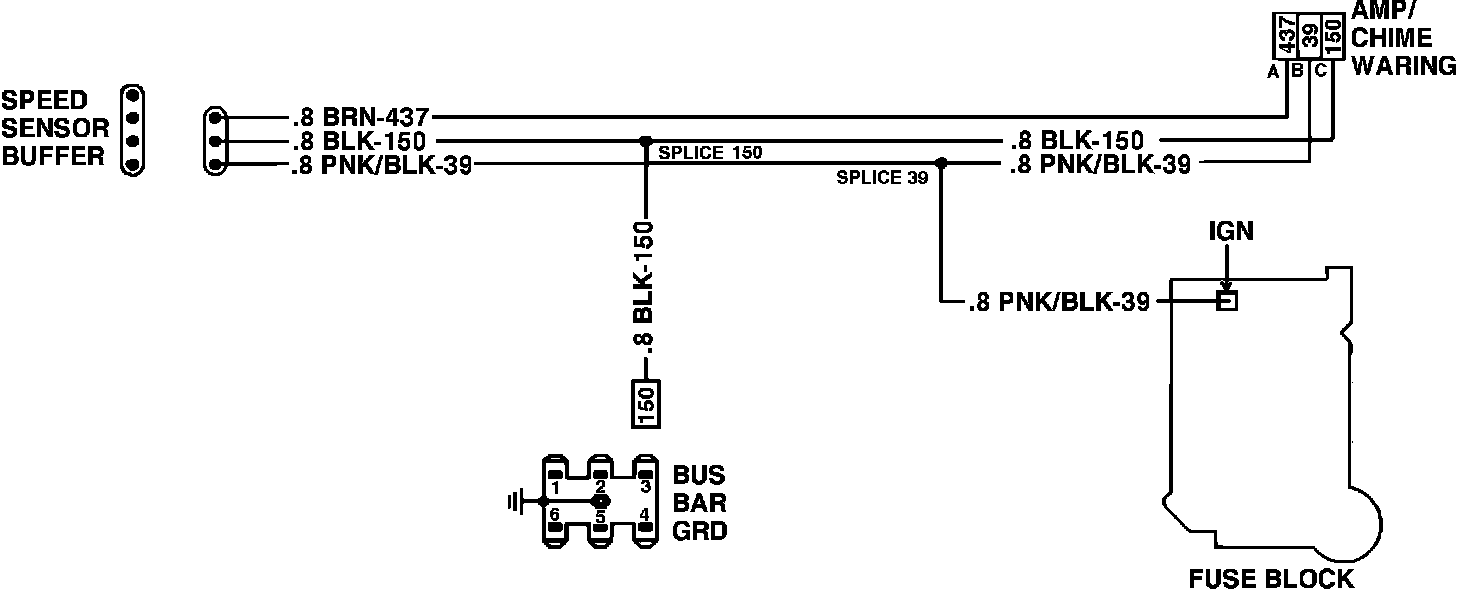

Over Speed Warning System Wiring Circuit. Less Cruise Control:
