Chevy Truck
>>
1985
>>
C 10 P/U 2WD L6-292 4.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
System Diagram
System Diagram

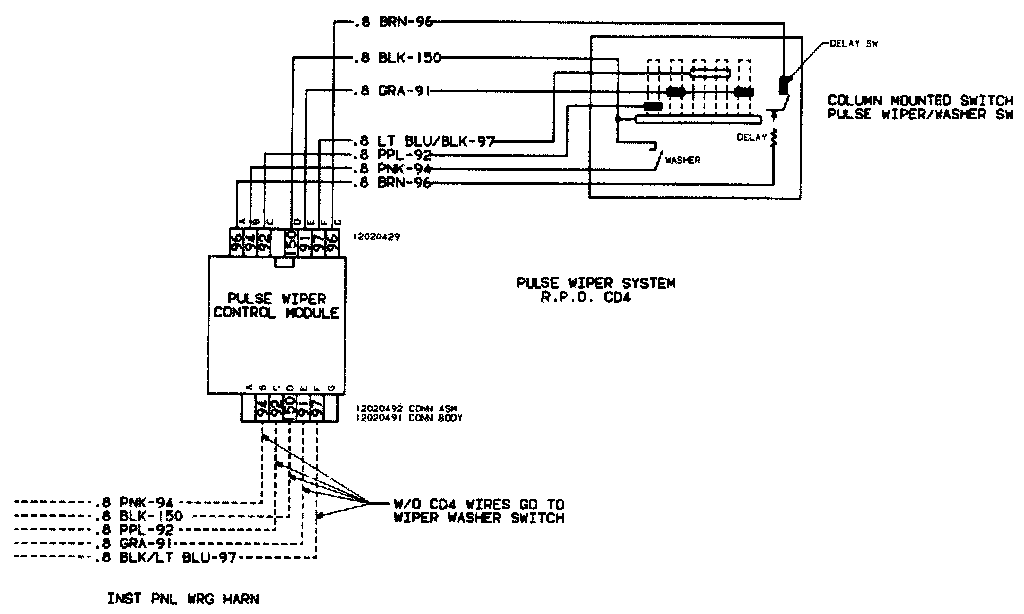

Pulse Wiper System Diagram
Pulse Wiper System:
