System Check - Air Management Check
System Check - Air Management Check

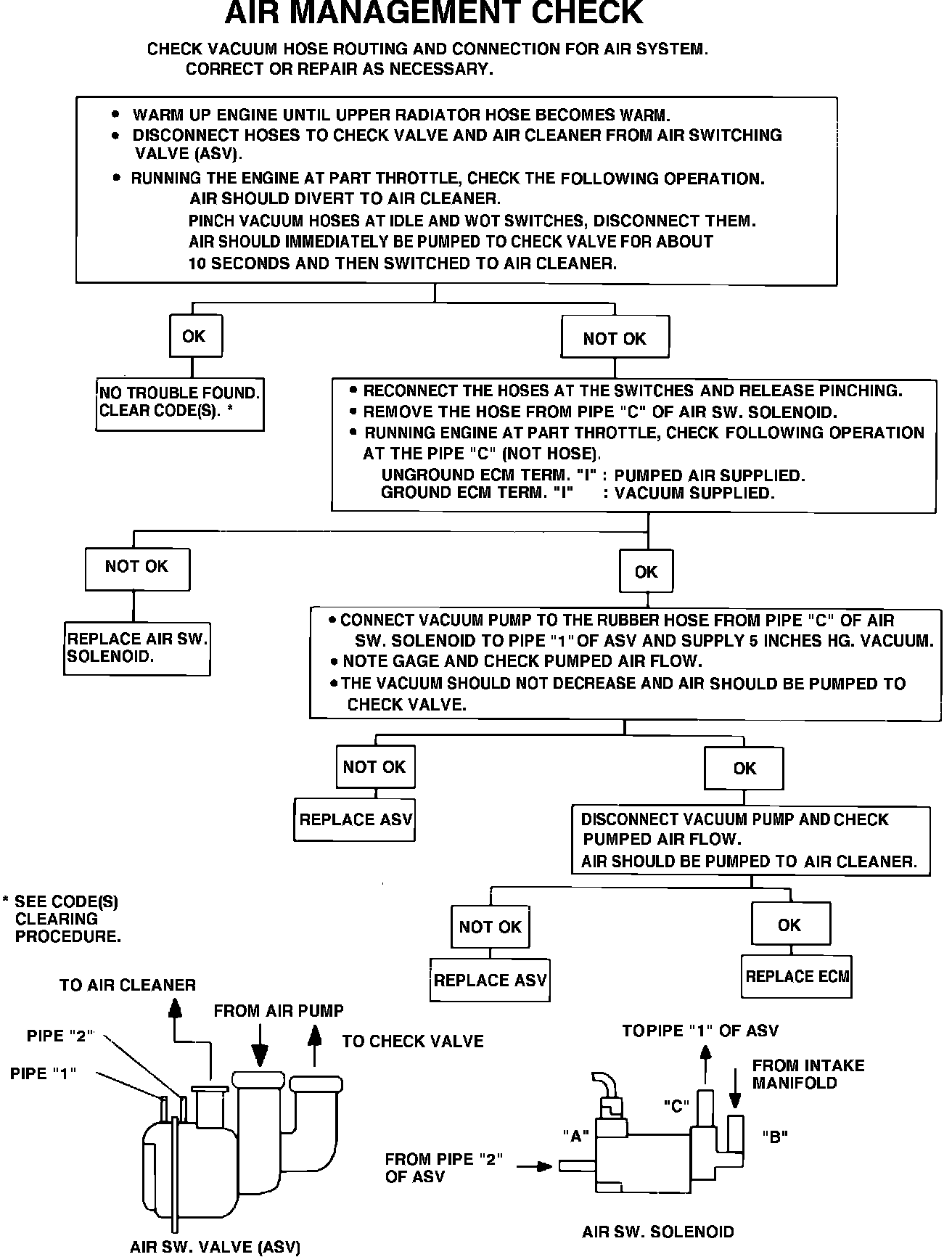

Fig. 34 Air Management system check. 1983:
