Connecting Rod Bearing: Service and Repair

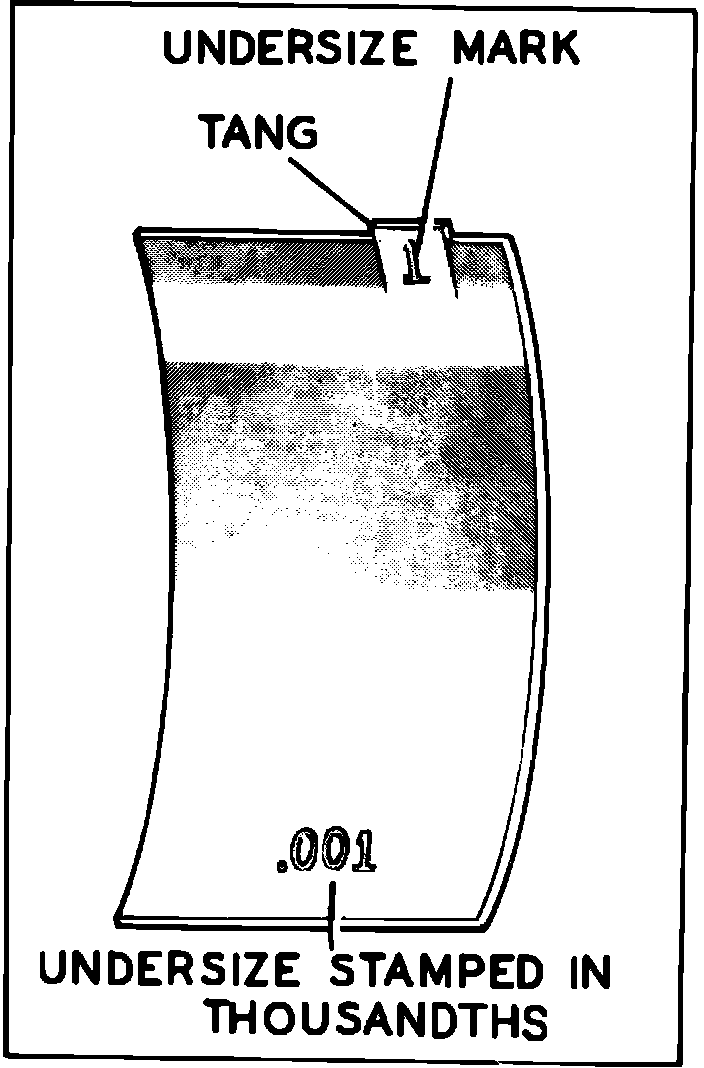

Fig. 42 Location of main & rod bearing undersize markings. V6-231:

V6-231
Rod bearings are available in standard sizes and undersizes of .001, .002 and .010 inch. Refer to Fig. 42, for undersize markings on bearing.
