A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Chart C-4C EST Performance Check
Chart C-4C EST Performance Check

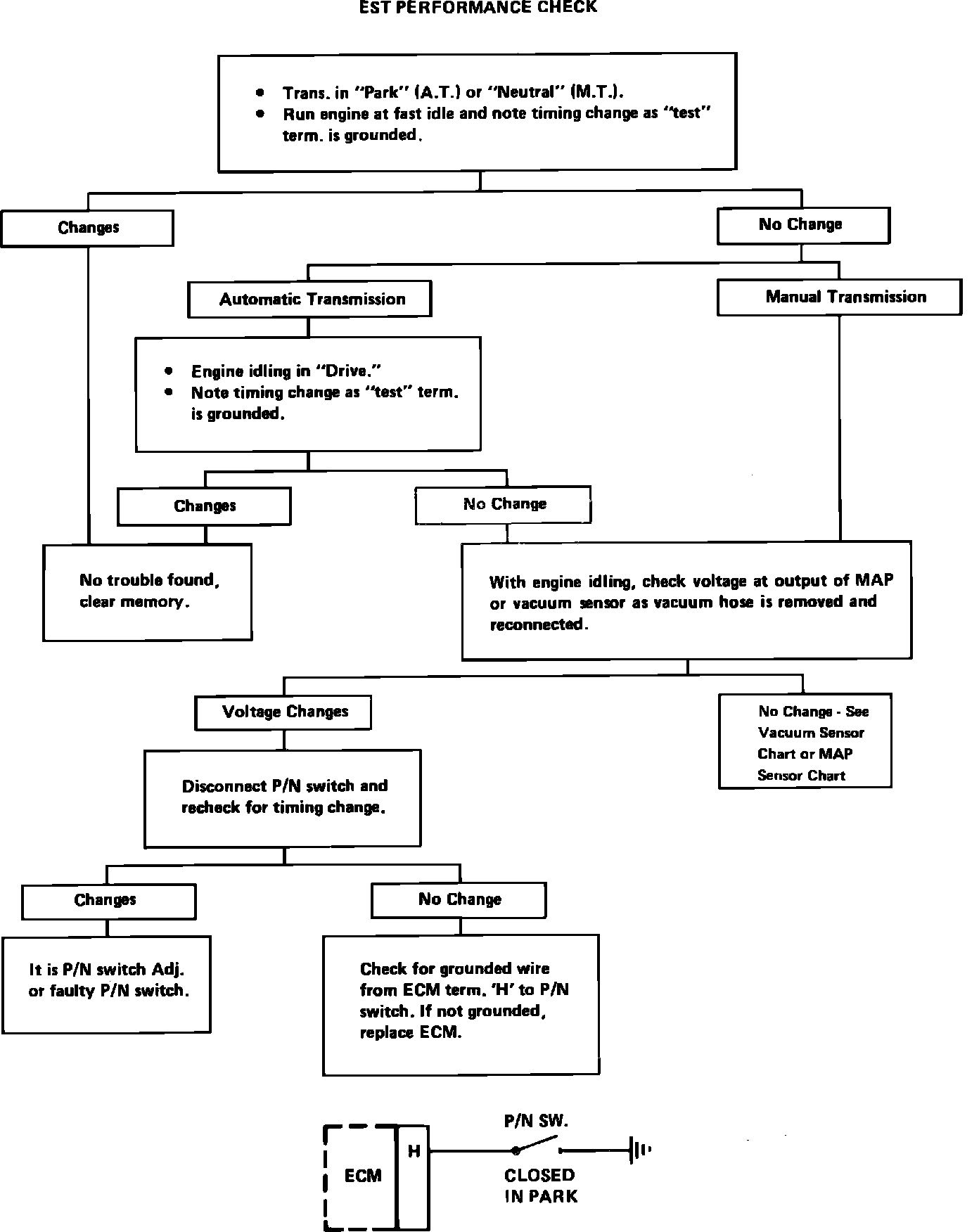

Fig. 4 EST performance check. All carbureted models:
