Home
>>
Chevy Truck
>>
1983
>>
Blazer Full Size V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle Controls
>>
With 700-R4 Automatic Transmission
>>
C Models (2WD)
C Models (2WD)

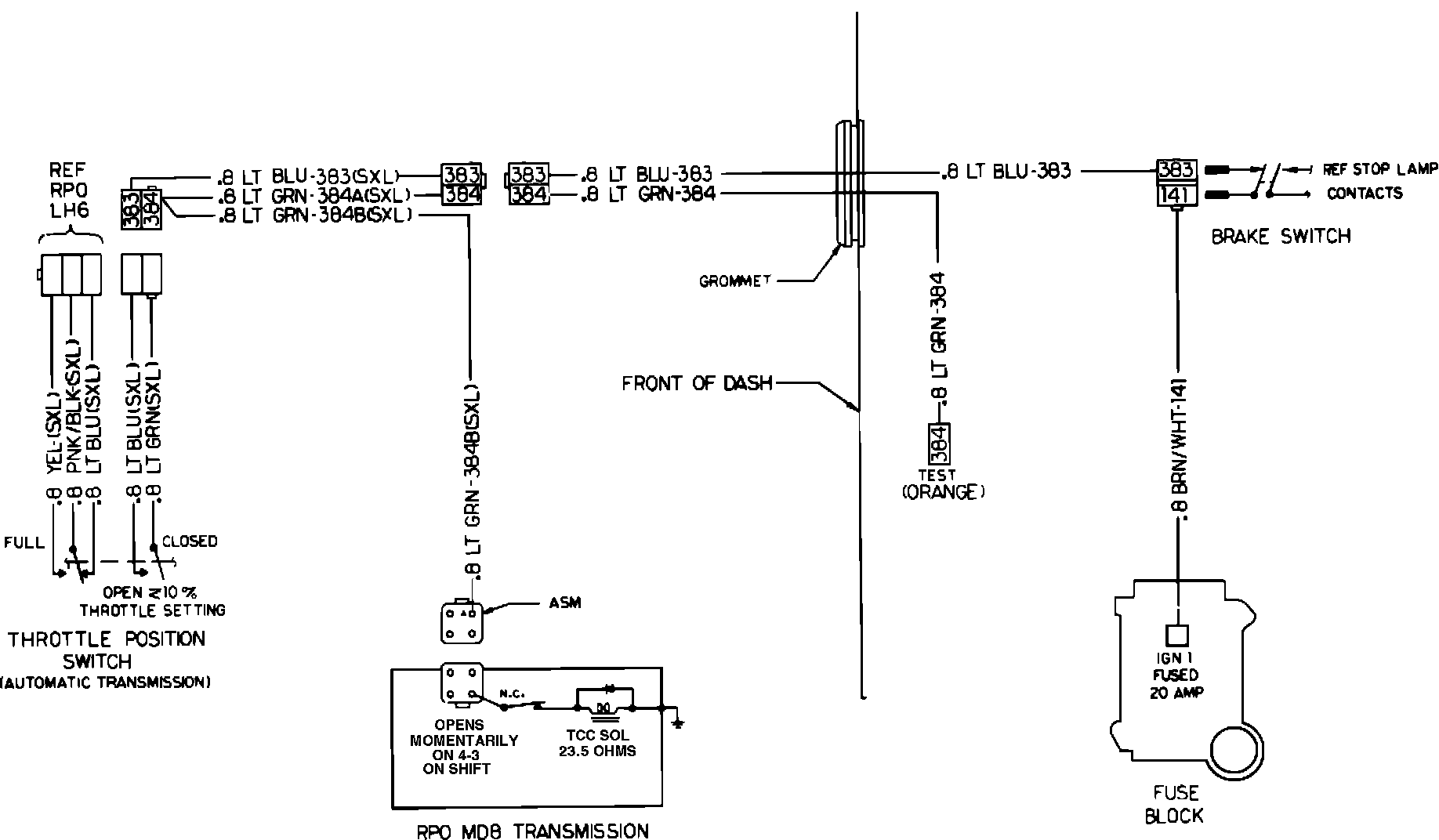

Automatic Transmission Wiring Circuit (THM700R4):
