Chevy Truck
>>
1983
>>
Blazer Full Size V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

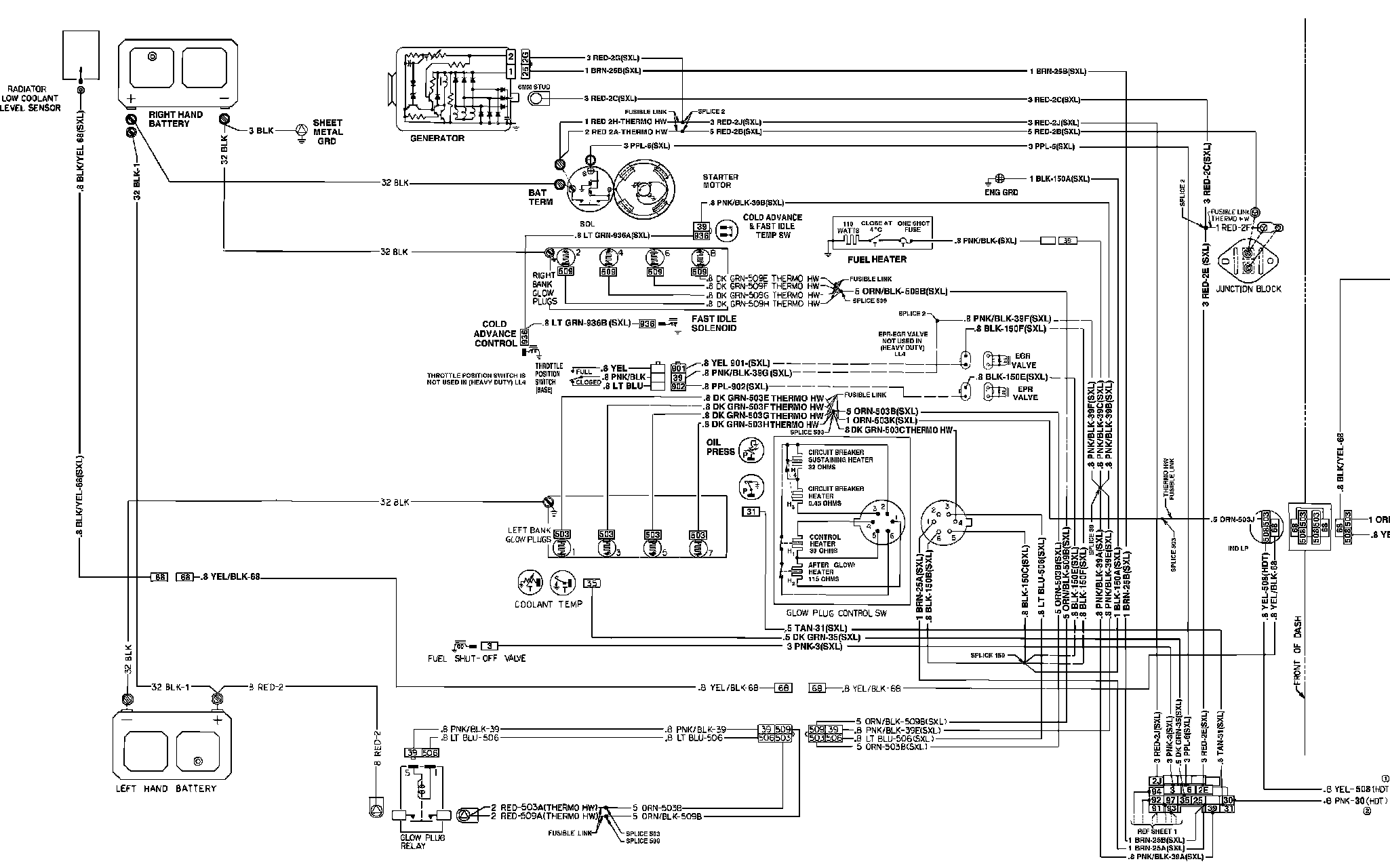

Engine Compartment Wiring Circuit
Engine Compartment Wiring Circuit
