Thermal Vacuum Valve: Locations

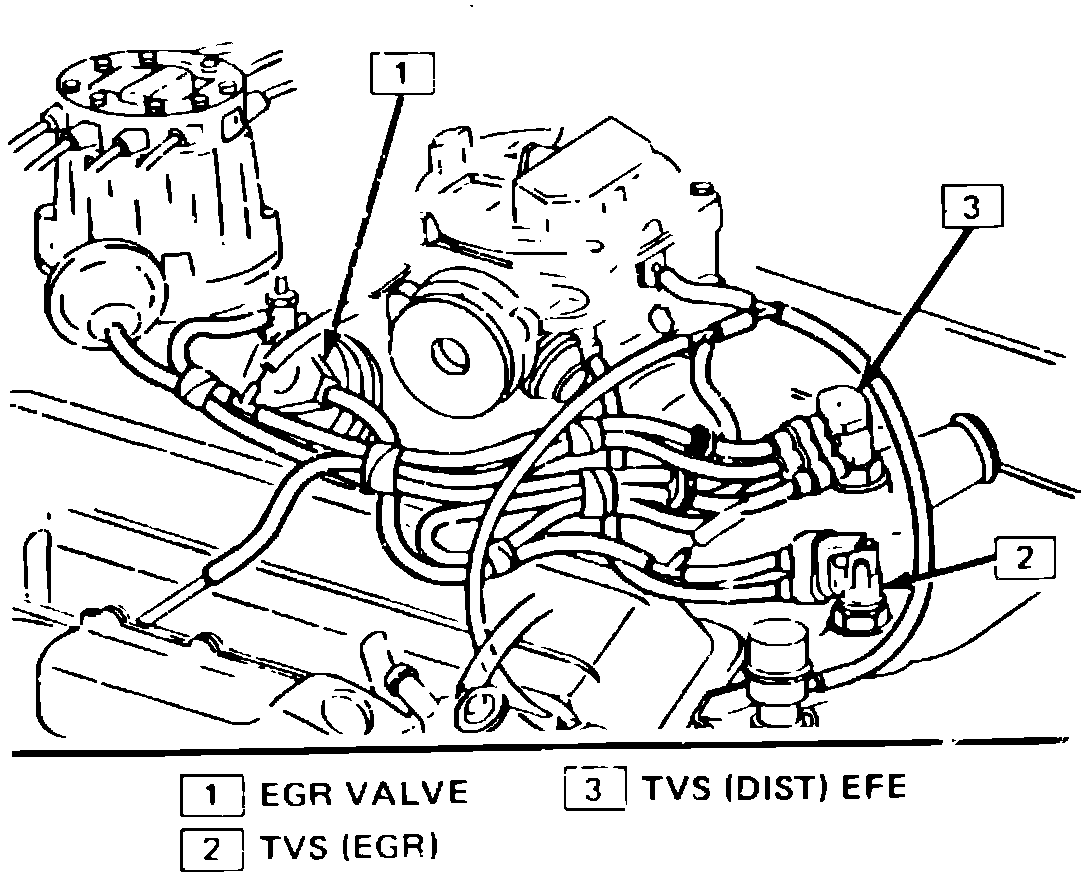

Fig. 15 Typical EGR/EFE/DS vacuum system. 1983-84 V8 gasoline engines less solenoid control:
