Air Diverter Valve: Testing and Inspection

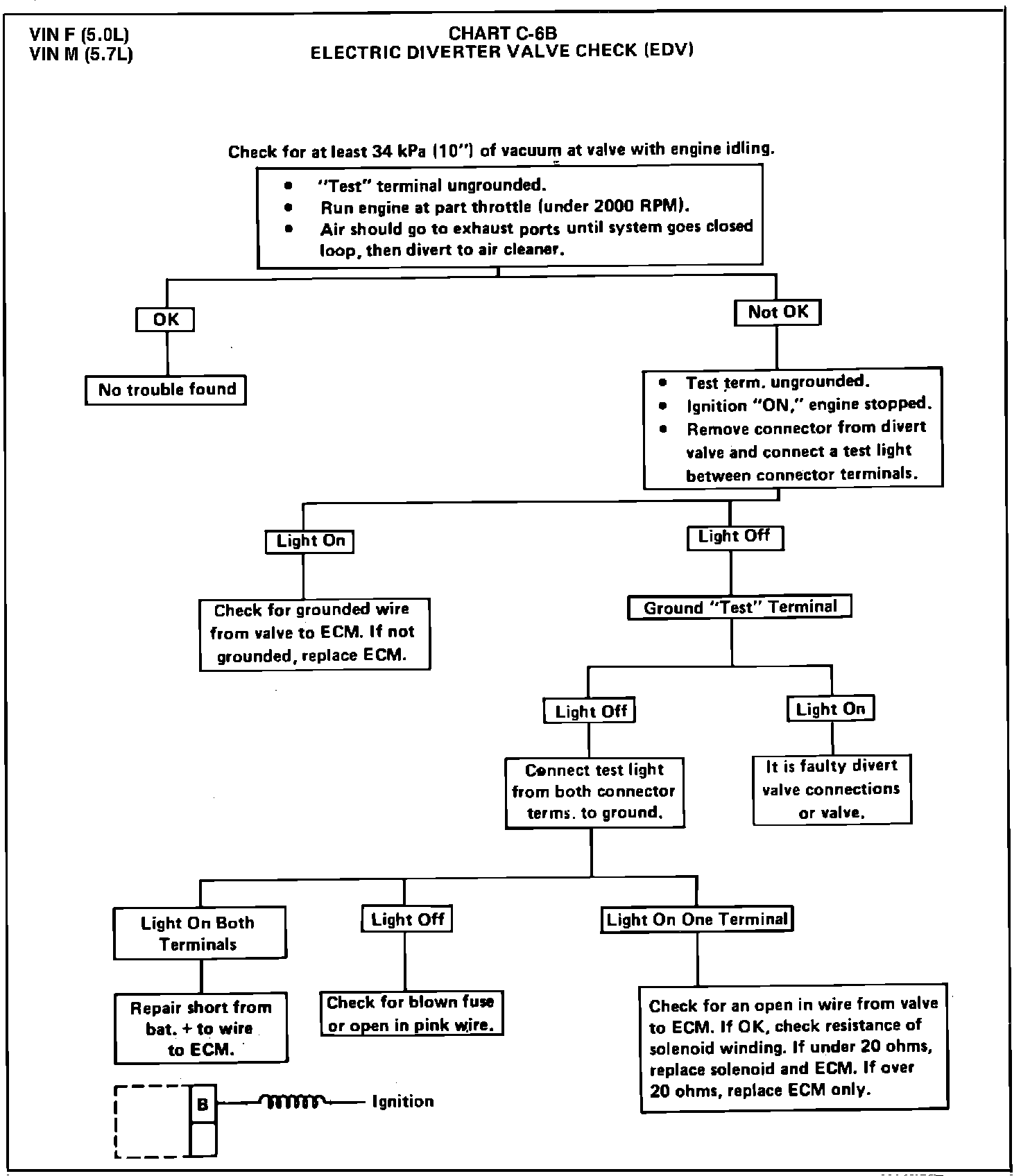

Chart C-6B - Air Management Check - Electric Diverter Valve Check:
