Chevy Truck
>>
1982
>>
S10,T10 P/U,Blazer V6-173 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Air Injection
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics

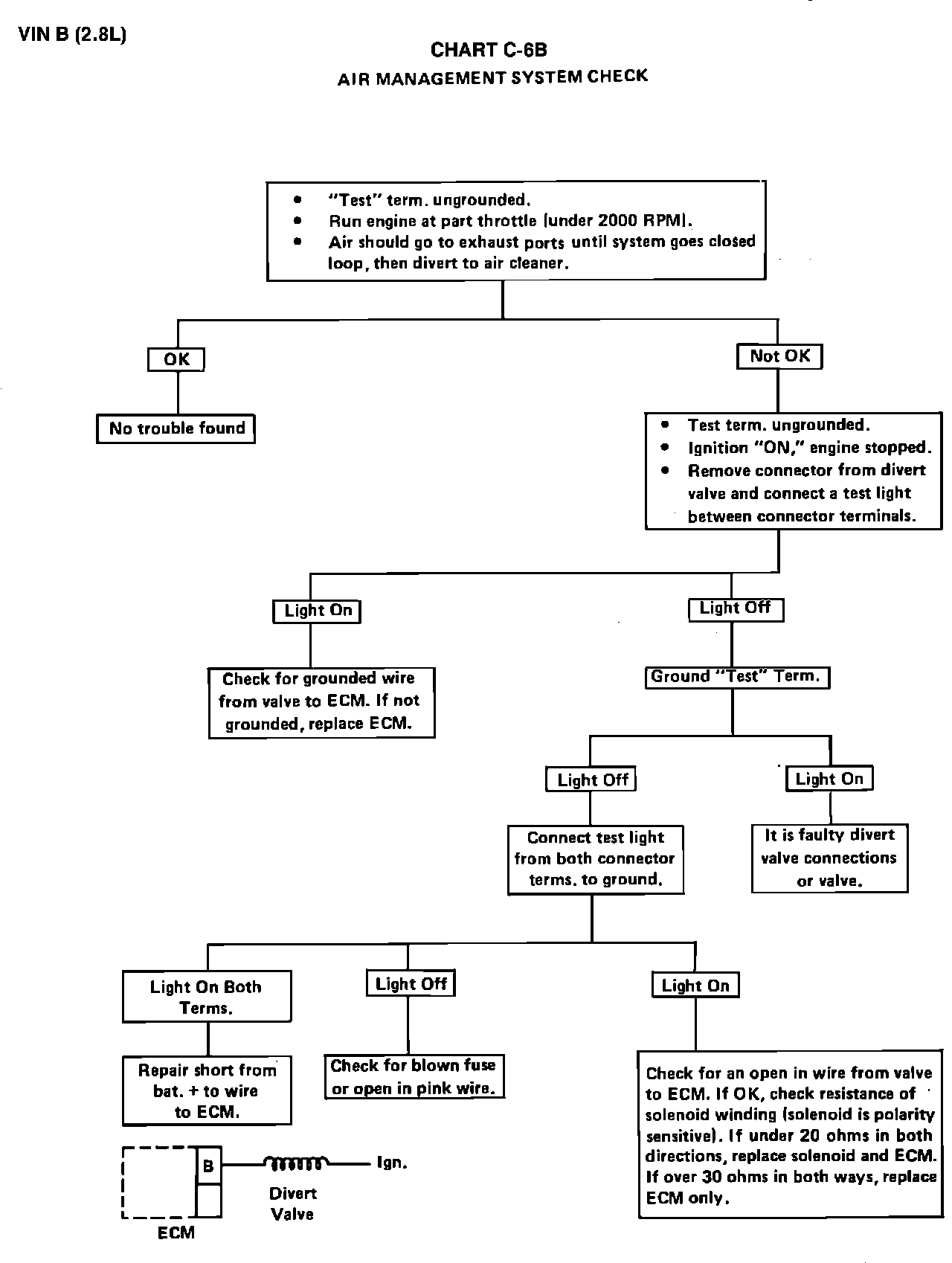

Chart C-6B - Air Management System Check:
